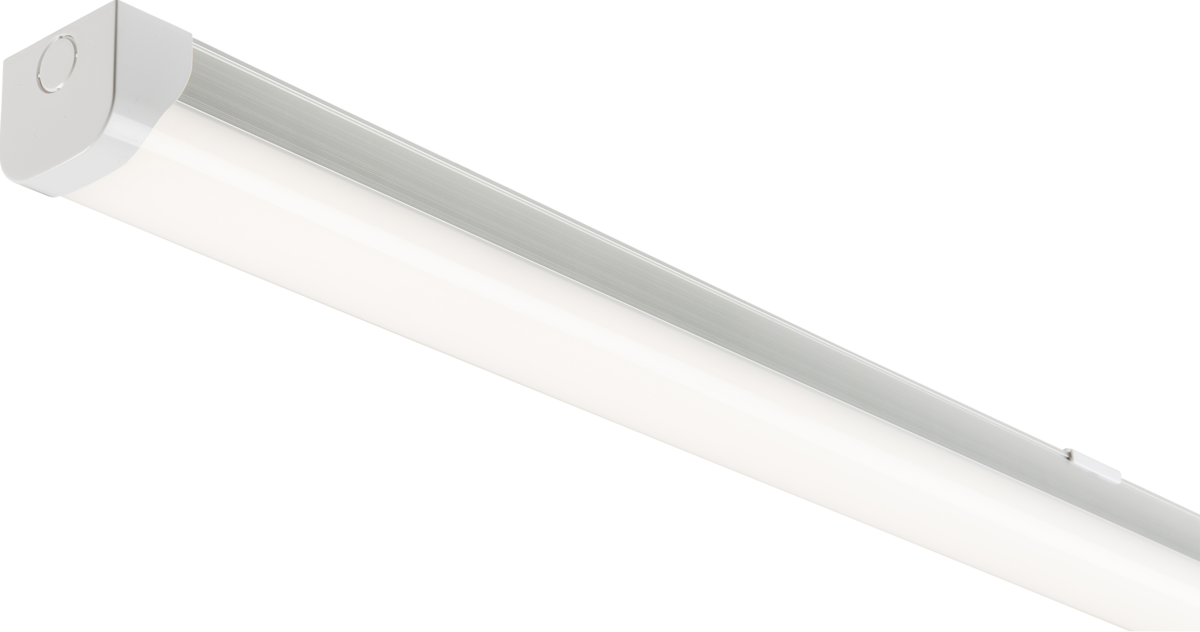

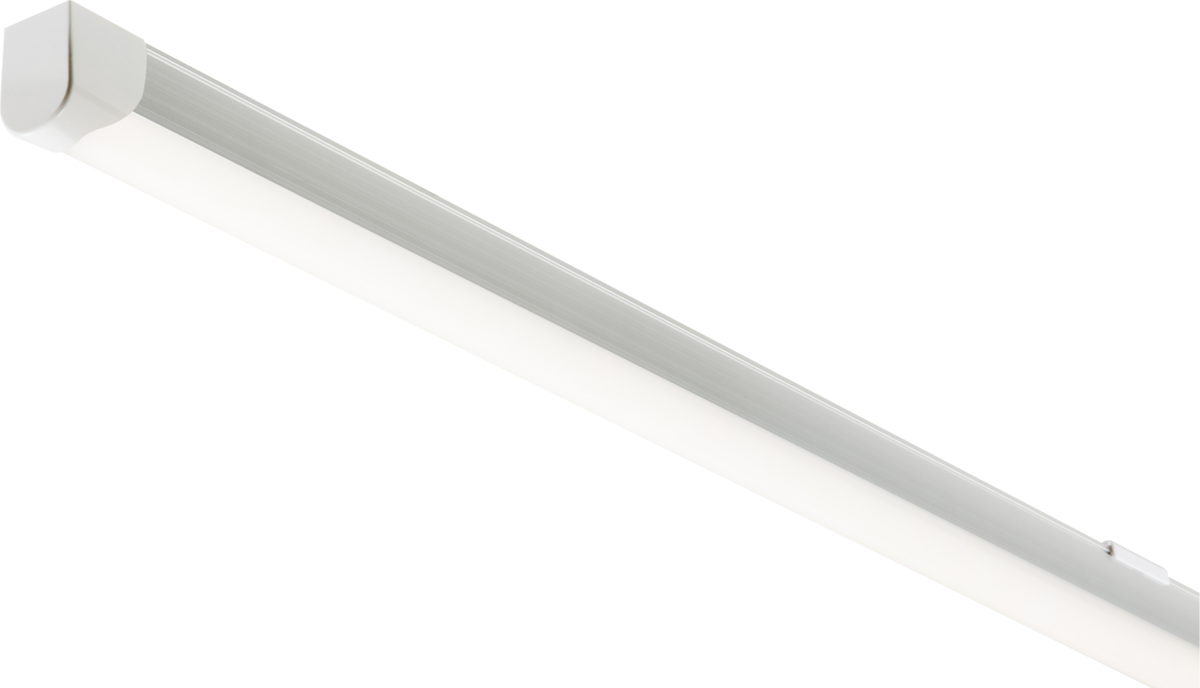

230V IP20 LED batten - Manufactured from aluminium and polycarbonate diffuser - Lightweight, versatile and slimline - Simple to install via easy wire terminal box on the rear - Alternative to T5 or T8 battens - Integral driver - Non-dimmable Ideal for commercial, retail and domestic use 4000K, Cool white Also available in dimmable models - Please select from drop down menu

Download

Datasheet

Specifications

Variant SKU	LEDBAT9
SKU	LEDBAT9, LEDBAT17, LEDBATW35, LEDBAT22, LEDBATW44, LEDBAT26, LEDBATW50EM
Length (mm)	2ft = 605, 4ft = 1220, 5ft = 1520, 6ft = 1768
Material	Aluminium
Material 2	polycarbonate
Finish	Matt Silver
Class	II
IP Rating	IP20
Voltage (V)	230V 50Hz
Diffuser	Opal
Emergency	Maintained / Non-maintained / Switched
Lamp Technology	LED
Lamp Included	Yes
Dimmable	No
Rated Life (Hours)	50000
Beam Angle (°)	120
Colour Temperature (K)	4000
Light Colour	Cool White
Lumens (lm)	9W = 900, 17W = 1800, 35W = 3700, 22W = 2400, 44W = 4700, 25W = 2700, 50W = 5350
Lumens (Em. mode)	205
Wattage (W)	9, 17, 35, 22, 44, 25, 50
Efficacy	126
CRI	80
Warranty (Years)	5
Commodity Code	9405423990
