Description

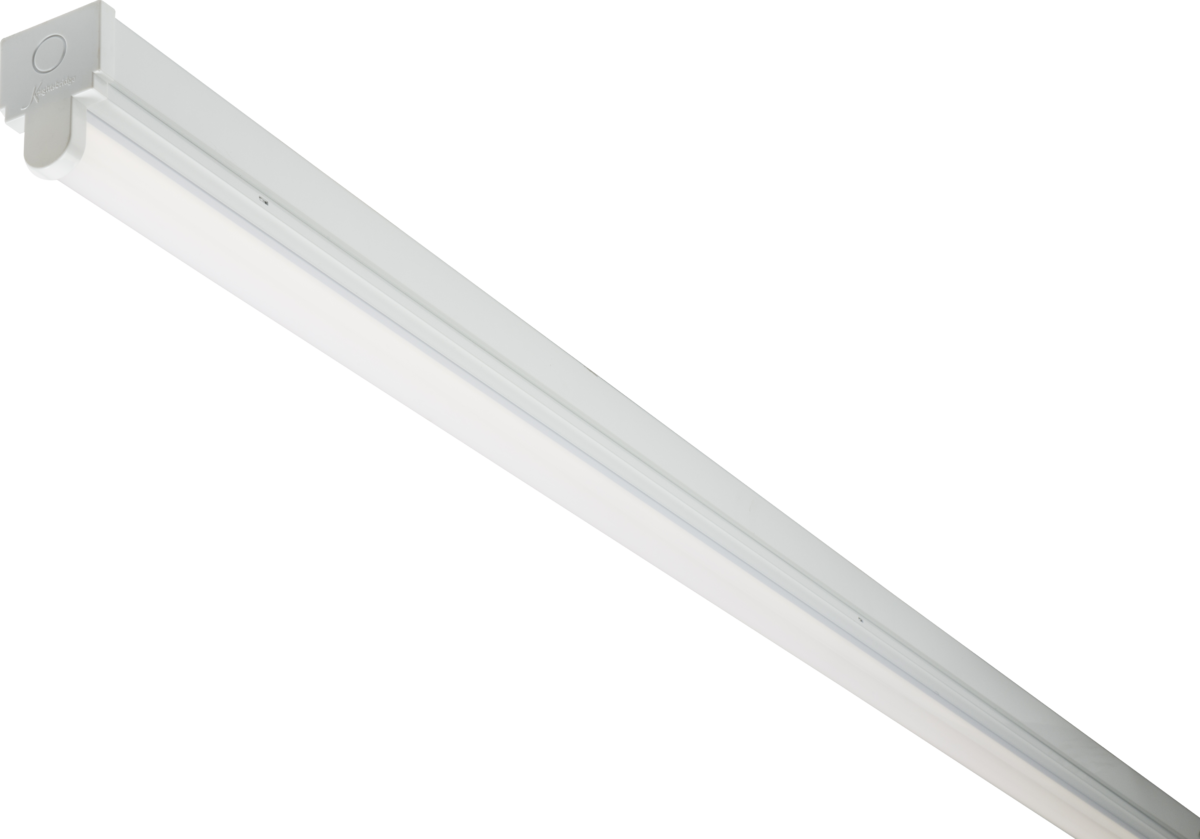

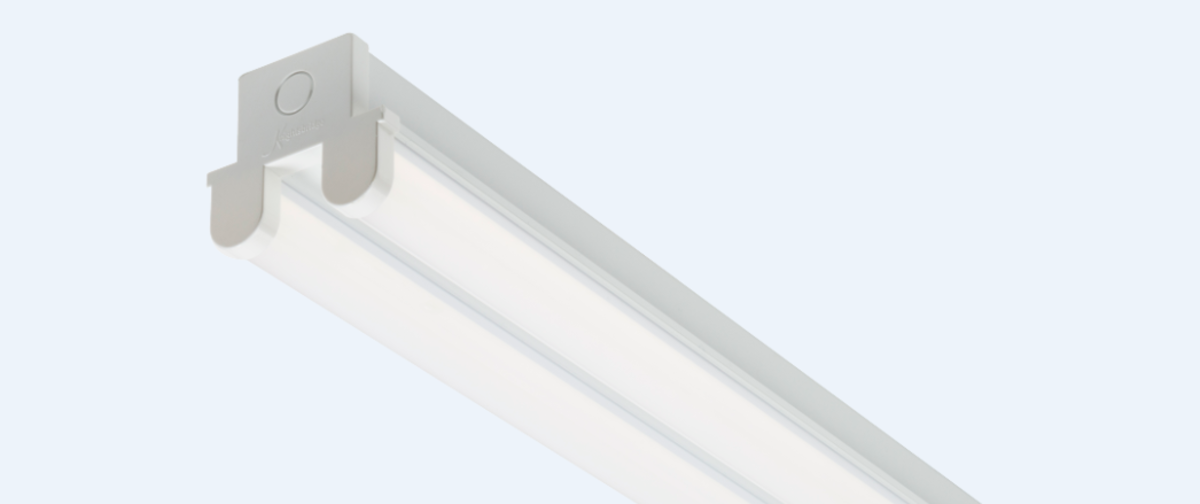

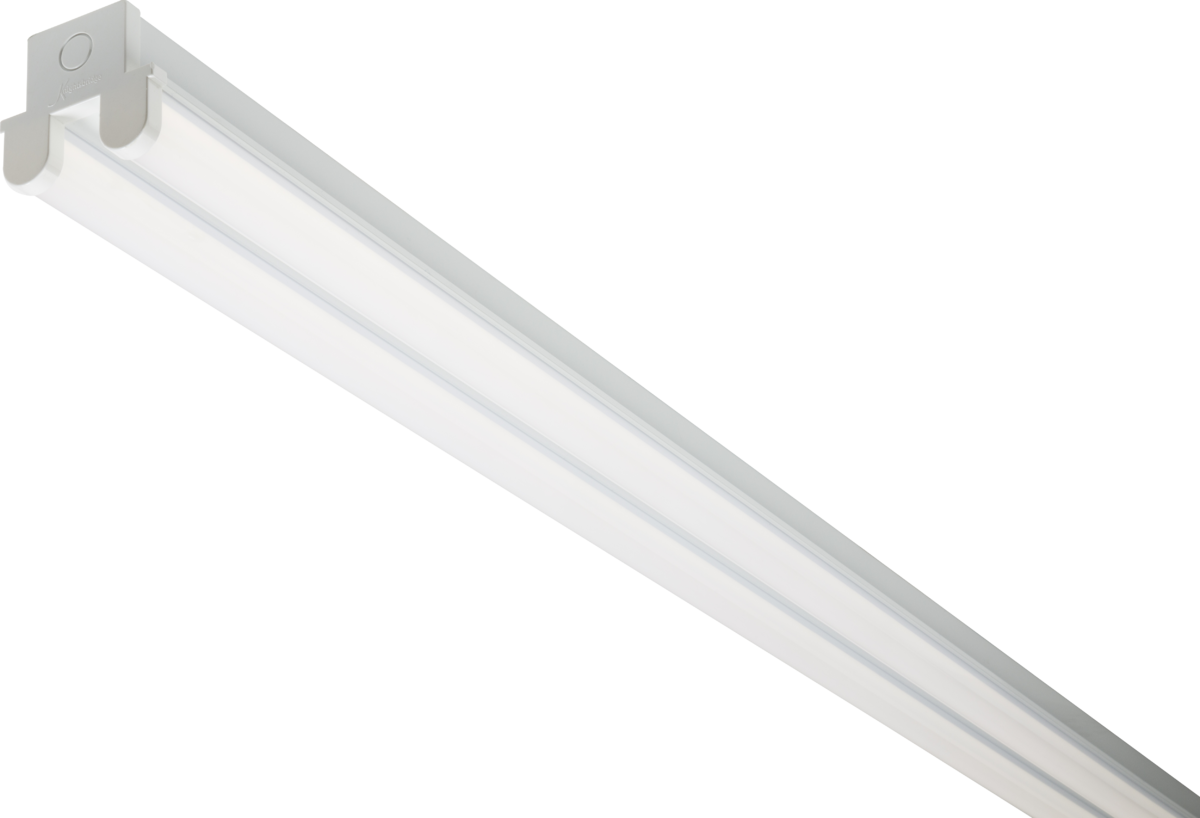

230V IP20 Single/Twin T8 Dedicated LED battens - Dedicated LED light source with polycarbonate diffuser - Ideal replacement / alternative to the traditional T8 batten - 5 year warranty 4000K, Cool white Options available for Emergency and Hi Lumens also. Please select from drop down menu
Datasheet
DatasheetSpecifications
| Variant SKU | T8BLED12 |
|---|---|
| SKU | T8BLED12, T8BLED14, T8BLED15, T8BLED15EM1, T8BLED15HL, T8BLED16, T8BLED16HL, T8BLED16HLEM, T8BLED22, T8BLED24, T8BLED25, T8BLED25EM1, T8BLED25HLEM, T8BLED26, T8BLED26EM1 |
| Length (mm) | 2ft = 615, 4ft = 1225, 5ft = 1525, 6ft = 1790 |
| Width (mm) | Single = 60, Twin = 95 |
| Projection (mm) | 85 |
| Material | Pressed steel |
| Material 2 | polycarbonate |
| Finish | White |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Diffuser | Opal |
| Lamp Technology | LED |
| Lamp Included | Yes |
| Dimmable | No |
| Rated Life (Hours) | 50000 |
| Beam Angle (°) | 120 |
| Colour Temperature (K) | 4000 |
| Light Colour | Cool White |
| Lumens (lm) | 2ft Single = 1200, 4ft Single = 2300, 5ft Single = 3000, 5ft Single HL = 4800, 6ft Single = 3450, 6ft Single HL = 5600, 2ft Twin = 2200, 4ft Twin = 4500, 5ft Twin = 5250, 5ft Twin HL = 9100, 6ft Twin = 6500 |
| Wattage (W) | 2ft Single = 10, 4ft Single = 20, 5ft Single = 26, 5ft Single HL = 40, 6ft Single = 30, 6ft Single HL = 50, 2ft Twin = 20, 4ft Twin = 40, 5ft Twin = 50, 5ft Twin HL = 80, 6ft Twin = 60 |
| Efficacy | 113 |
| CRI | 80 |
| Driver Type | Constant Current |
| Warranty (Years) | 5 |
| Commodity Code | 9405423990 |
