Description

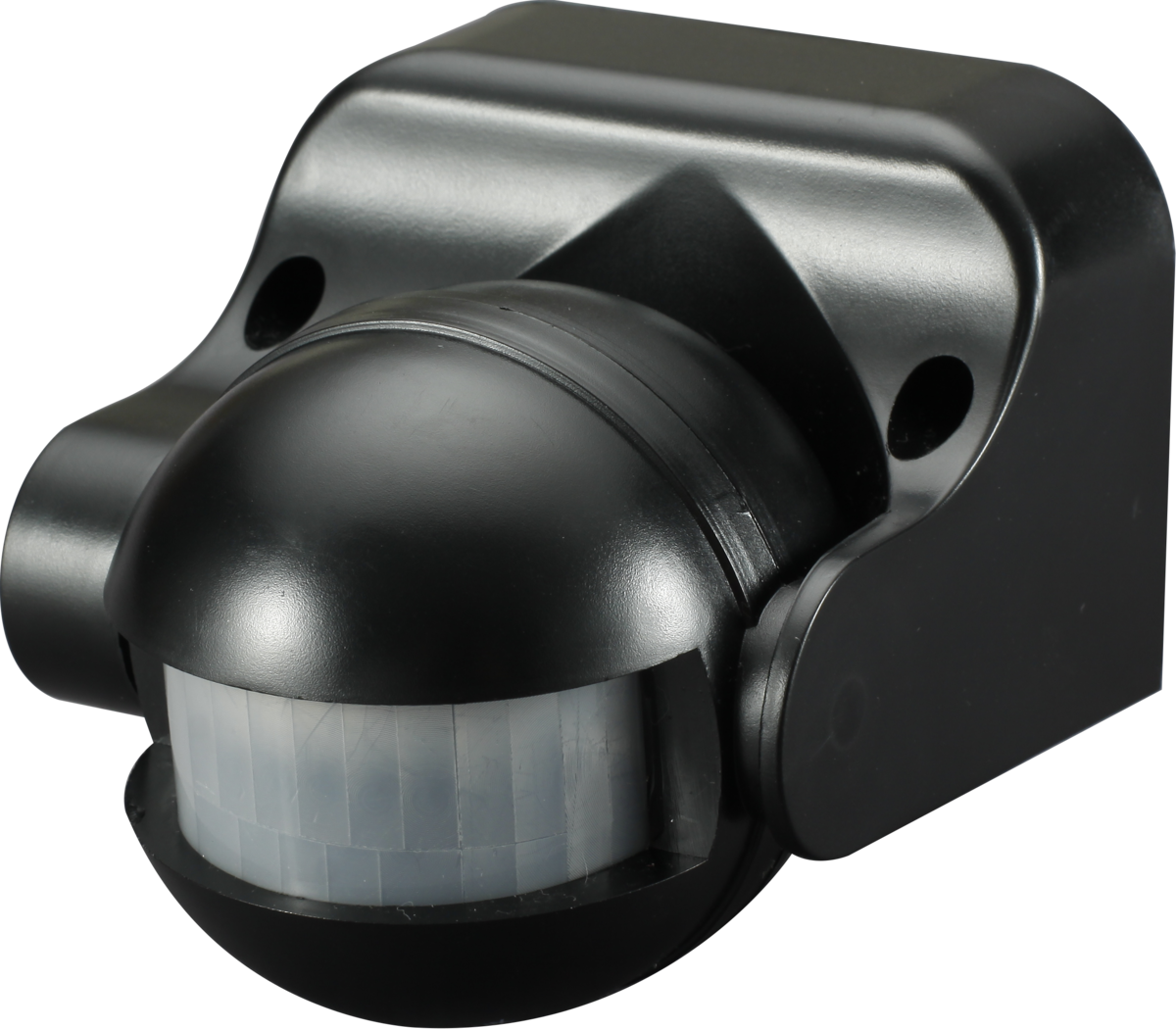

Stand-alone PIR unit to suit a variety of installations
- IP44 rated
- 180° field of detection
- 12m range @ 2.4m installation height
- Adjustable head unit for optimum positioning
- Wall or ceiling mountable
- Automatic operation
- Can be wired in parallel
- Adjustable Lux
- Adjustable time : 10 seconds to 8 minutes
- Switching capacity: Max. 1200W Incandescent / Max. 300W LED
- Certified to EN 60669-2-1, EN 60669-1, EN 55015. EN 61547, EN 61000
- IP44 rated
- 180° field of detection
- 12m range @ 2.4m installation height
- Adjustable head unit for optimum positioning
- Wall or ceiling mountable
- Automatic operation
- Can be wired in parallel
- Adjustable Lux
- Adjustable time : 10 seconds to 8 minutes
- Switching capacity: Max. 1200W Incandescent / Max. 300W LED
- Certified to EN 60669-2-1, EN 60669-1, EN 55015. EN 61547, EN 61000
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | OS004, OS004B |

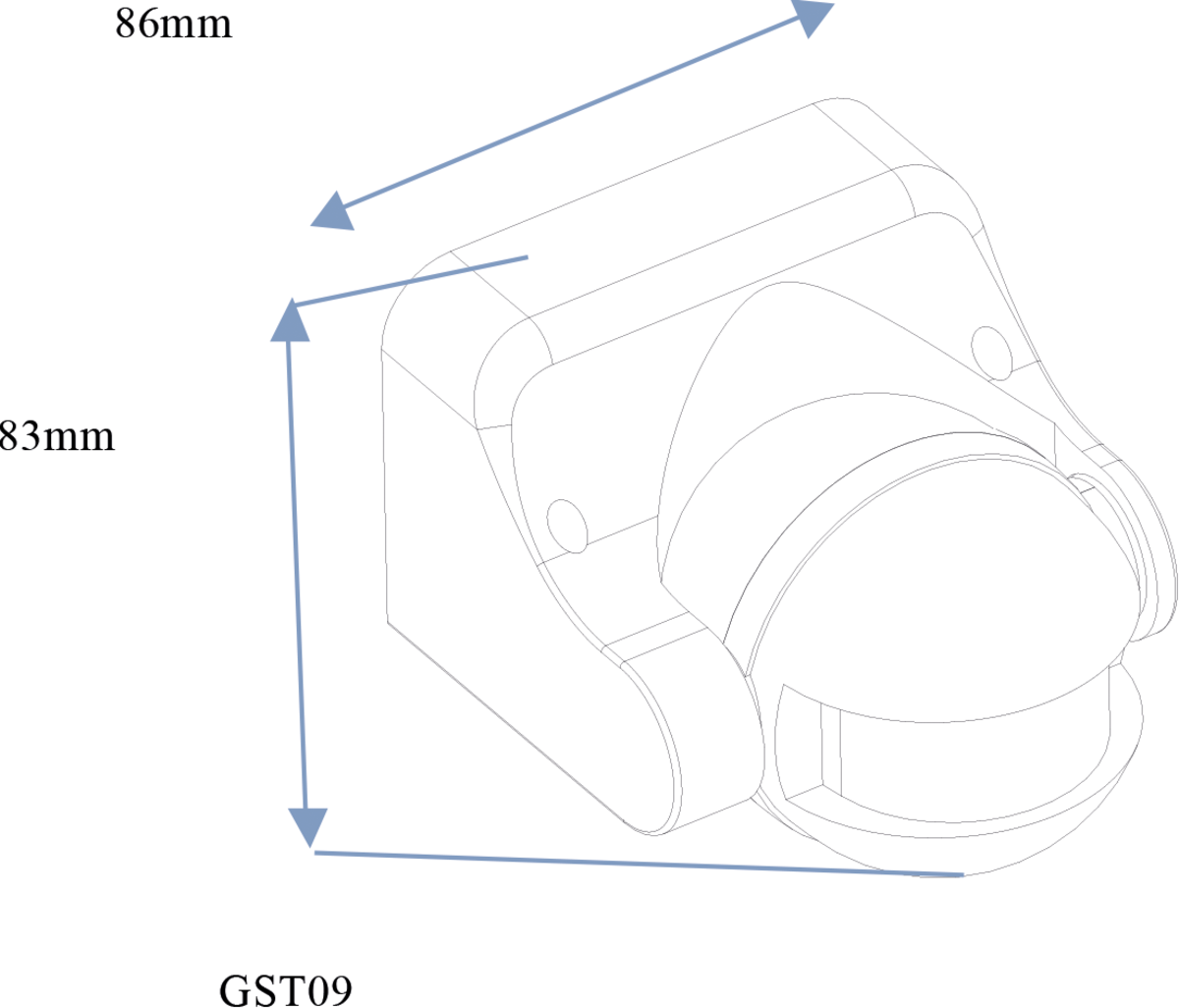

| Height (mm) | 82 |
| Width (mm) | 86 |
| Projection (mm) | 100 |
| Material | Polycarbonate |
| Finish | White, Black |
| Class | II |
| IP Rating | IP44 |
| Voltage (V) | 230V 50Hz |
| Detection Angle | 180 |
| Detection Range | 12M @ Height of 2.4M |
| Lux | Adjustable |
| Time | Adjustable 10s - 8m |
| Warranty (Years) | 1 |
| Commodity Code | 8536500500 |
