Description

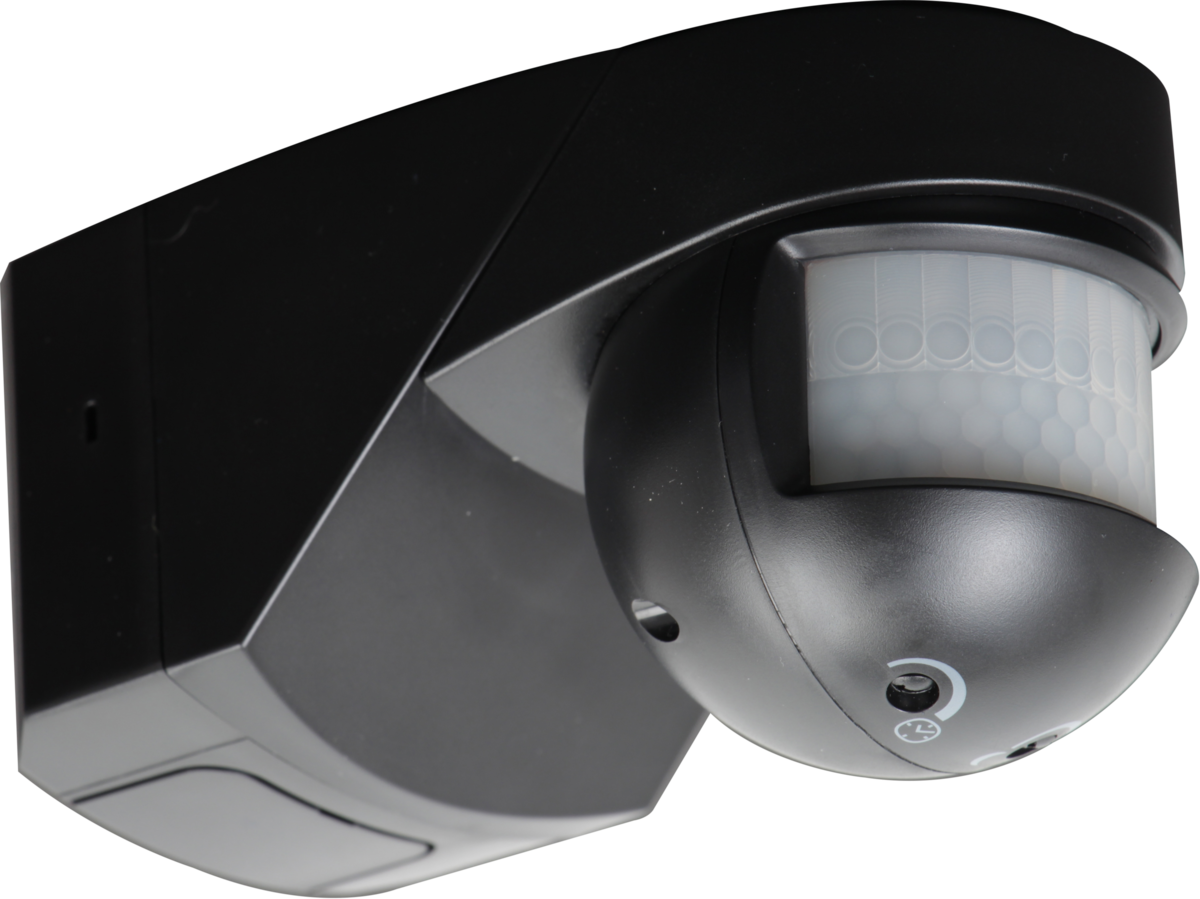

Professional stand-alone PIR unit to suit a variety of installation requirements - IP55 rated - 200° field of detection - 12m range @ 2.4m installation height - Adjustable head unit for optimum positioning - Easy to install wire to the rear mounting plate then simply click the PIR unit into the mounting plate
- Versatile mounting options including wall, ceiling or corner mounting
- Automatic operation with a manual override option
- Can be wired in parallel
- Adjustable Lux
- Adjustable time : 3 seconds to 30 minutes
- Switching capacity: Max. 2000W Incandescent / Max. 225W LED
- Includes shrouding kit for blocking of parts off the PIR to prevent
- Certified to EN 60669-2-1, EN60669-1, EN 55015, EN 61547, EN 61000
- Supplied in Knightsbridge box
- Versatile mounting options including wall, ceiling or corner mounting
- Automatic operation with a manual override option
- Can be wired in parallel
- Adjustable Lux
- Adjustable time : 3 seconds to 30 minutes
- Switching capacity: Max. 2000W Incandescent / Max. 225W LED
- Includes shrouding kit for blocking of parts off the PIR to prevent
- Certified to EN 60669-2-1, EN60669-1, EN 55015, EN 61547, EN 61000
- Supplied in Knightsbridge box
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | OS001, OS001B |
| Height (mm) | 82 |
| Width (mm) | 72 |
| Projection (mm) | 133 |
| Material | Polycarbonate |
| Material2 | ABS |
| Finish | White, Black |
| Class | II |
| IP Rating | IP55 |
| Voltage (V) | 230V 50Hz |
| Lux | Adjustable |
| Timer | Adjustable - 3s to 30m |
| Detection Range | 12M @ 2.4M Installation Height |
| Detection Angle | 200 Degree |
| Warranty (Years) | 1 |
| Commodity Code | 8536500500 |
