Description

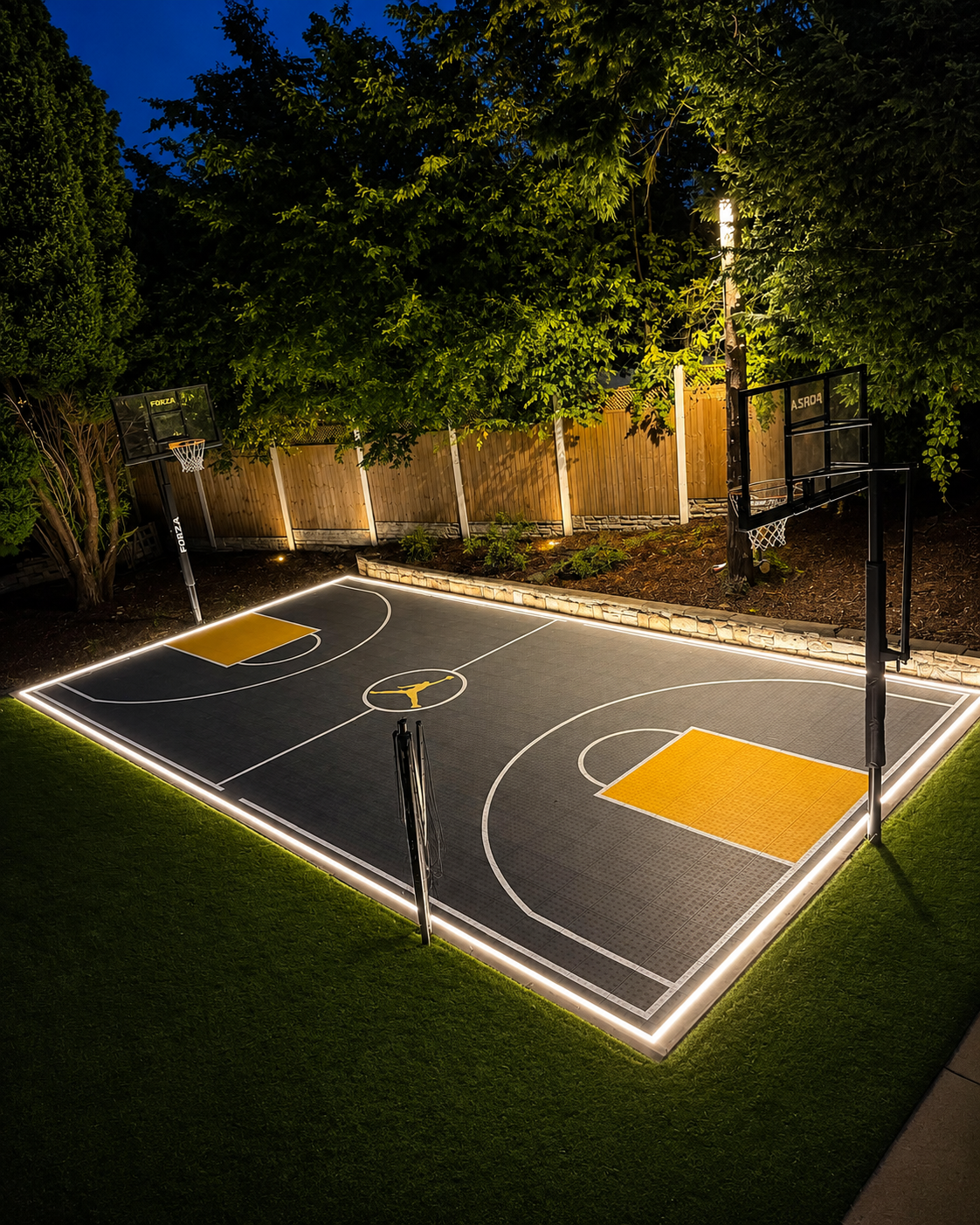

Professional outdoor in-ground linear lighting supplied as a complete pack. Each kit includes high-CRI IP67 COB LED strip, matched 24V power supplies, and an extra-deep recessed aluminium floor housing with diffuser (in 2m lengths) for a uniform, dot-free line of light built for the UK outdoors.
Expertly supplied by Manningham Lighting & Electrical.
Key Benefits
- Full pack: LED strip, drivers, recessed aluminium housing + diffuser, end caps, basic fixings.
- IP67 sealed COB tape: reliable in humid and exposed environments.
- CRI 90+: natural colour rendering for landscaping and architecture.
- Dot-free illumination: FCOB technology with opal diffuser.
- Flexible lengths: choose 10–50m packs; cut at 50mm intervals on site.
Applications

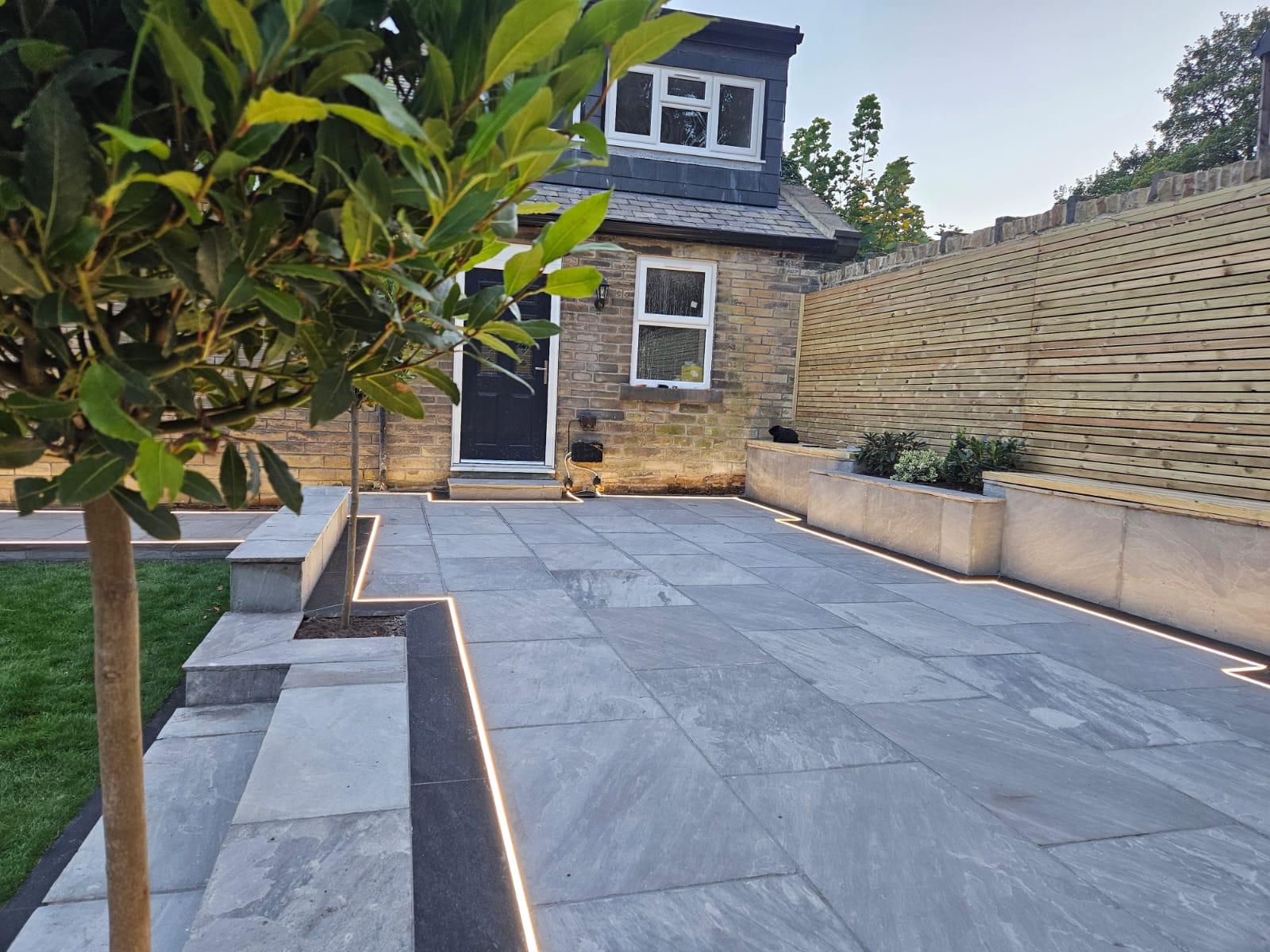

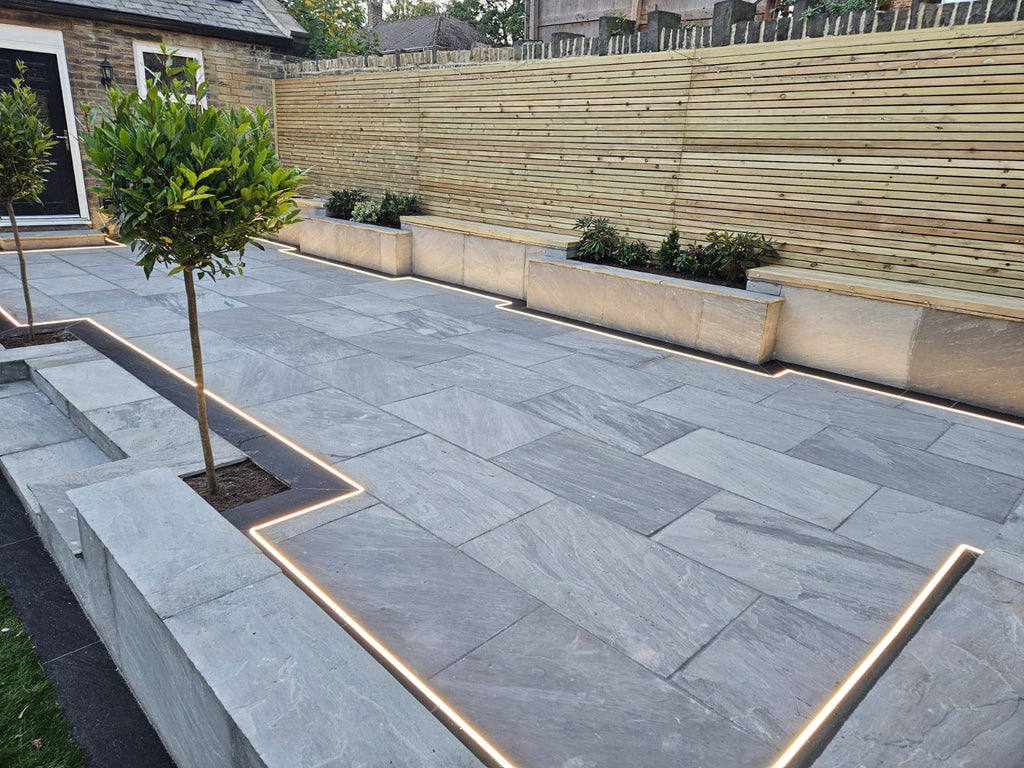

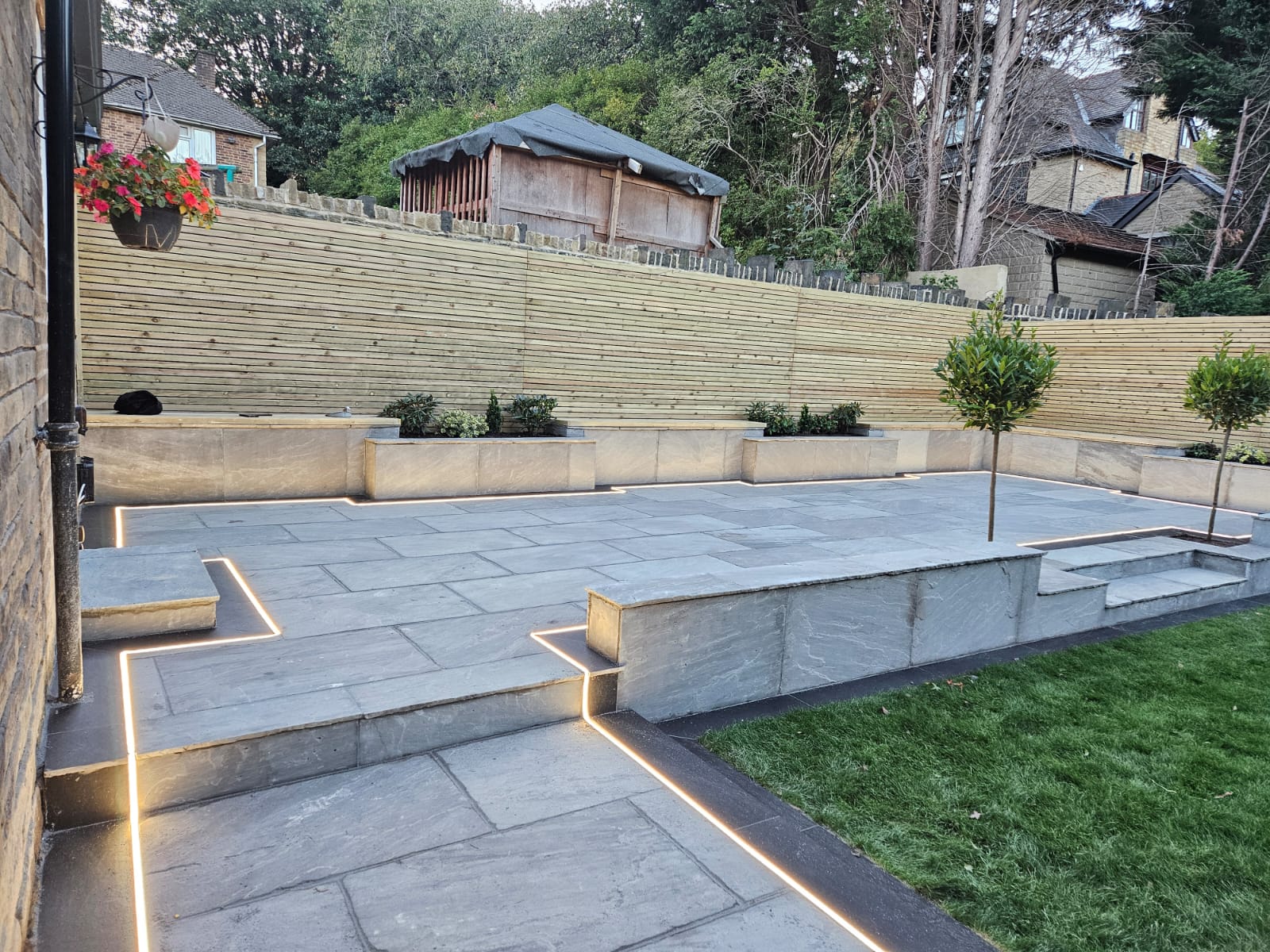

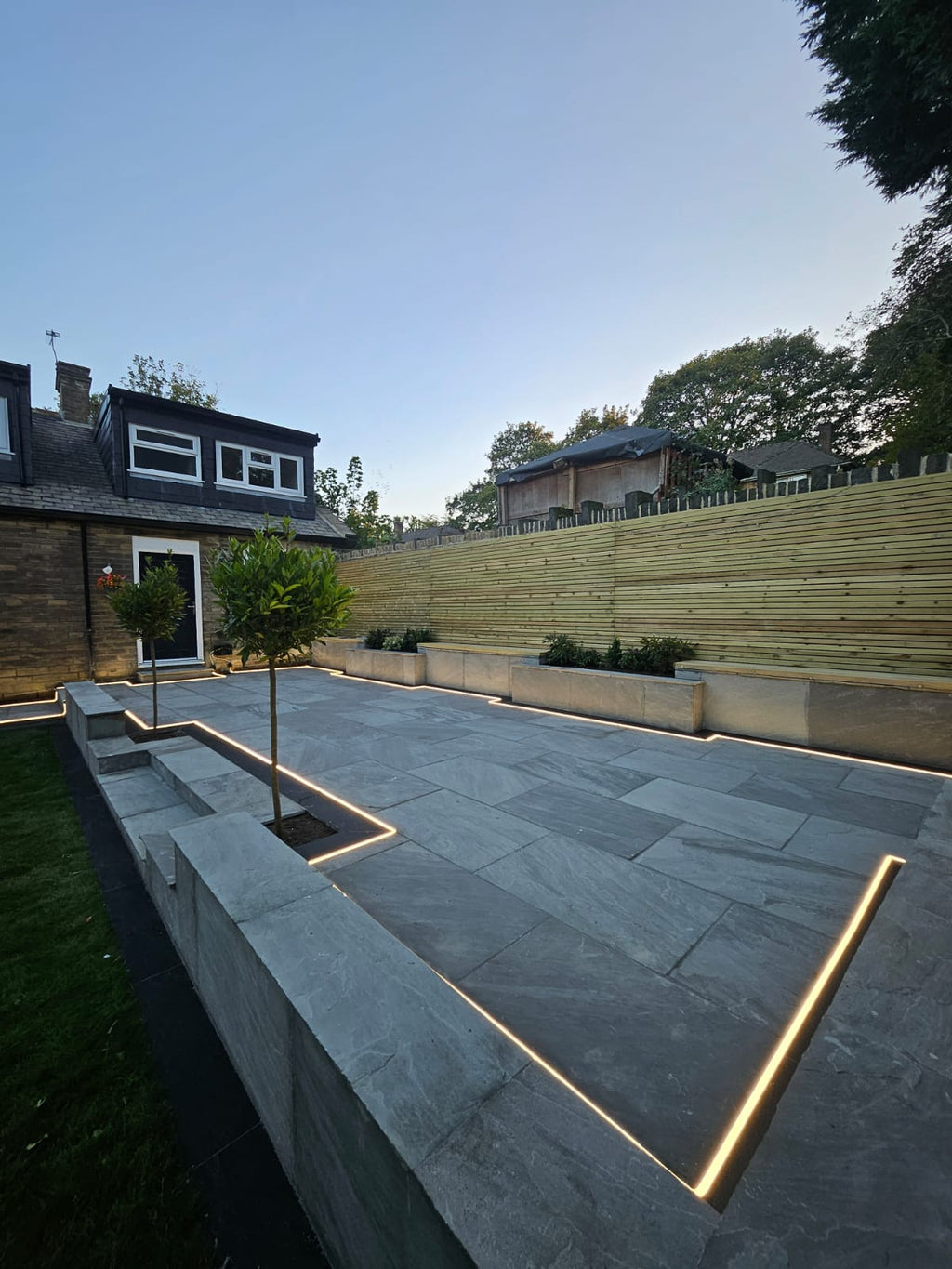

- Driveways, garden paths and patios
- Step edges and wayfinding
- Façade and perimeter accents
- Hospitality and retail exteriors
What you may still need: outdoor-rated SY cable for site wiring, and a weatherproof junction box if power supplies are housed outdoors.

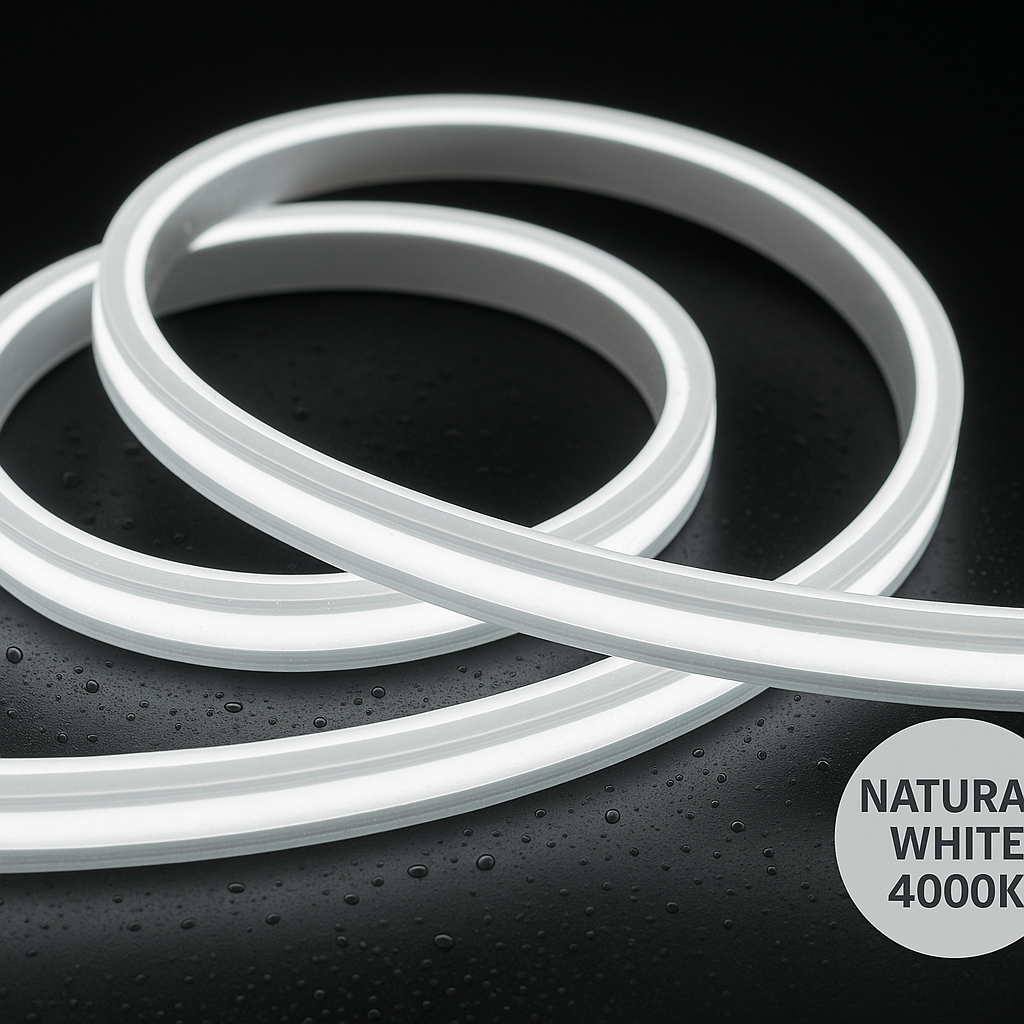

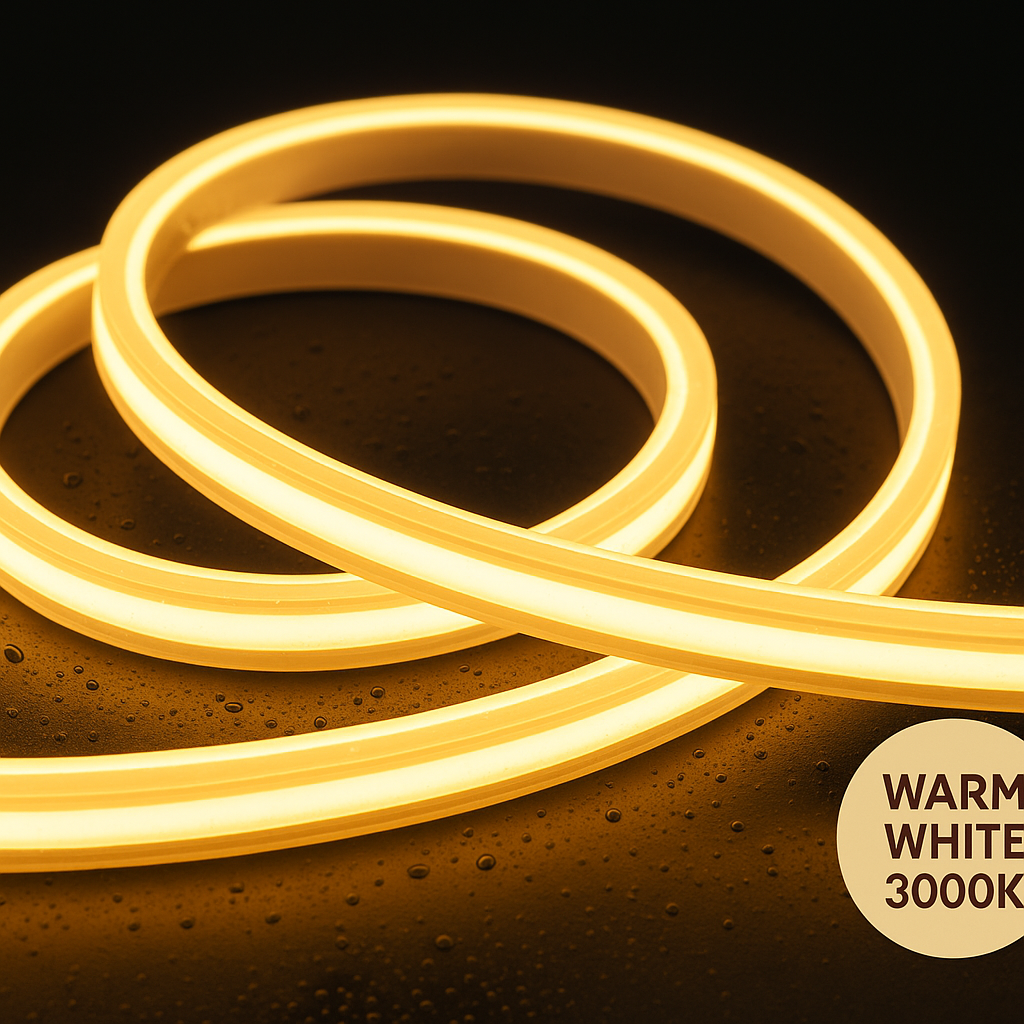

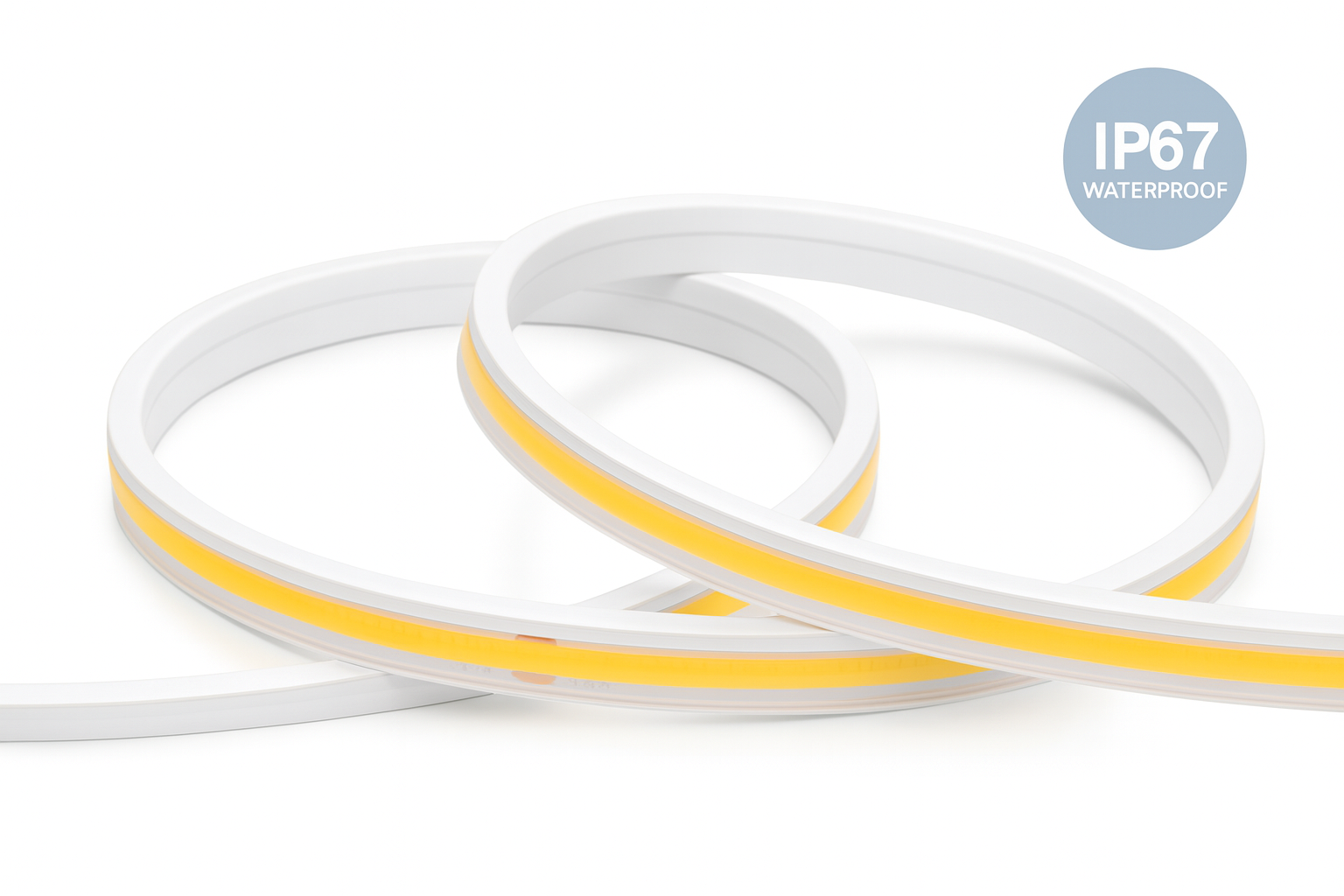

COB LED Tape
- Model: LUX-11WIP67-COB50
- Voltage: 24V DC | Power: 11 W/m | CRI: 90+
- Cut interval: 50mm | Min. bend radius: ≥ 30mm
- Ingress protection: IP67 (sealed tape)
- CCT Options: 3000K / 4000K / 6500K
- Standard roll: 50m
Luminous Output
| Colour Temp | Lumen / m | Efficiency (lm/W) |
|---|---|---|
| 3000K | ~957 lm/m | ~87 lm/W |
| 4000K | ~1045 lm/m | ~95 lm/W |
| 6500K | ~1056 lm/m | ~96 lm/W |

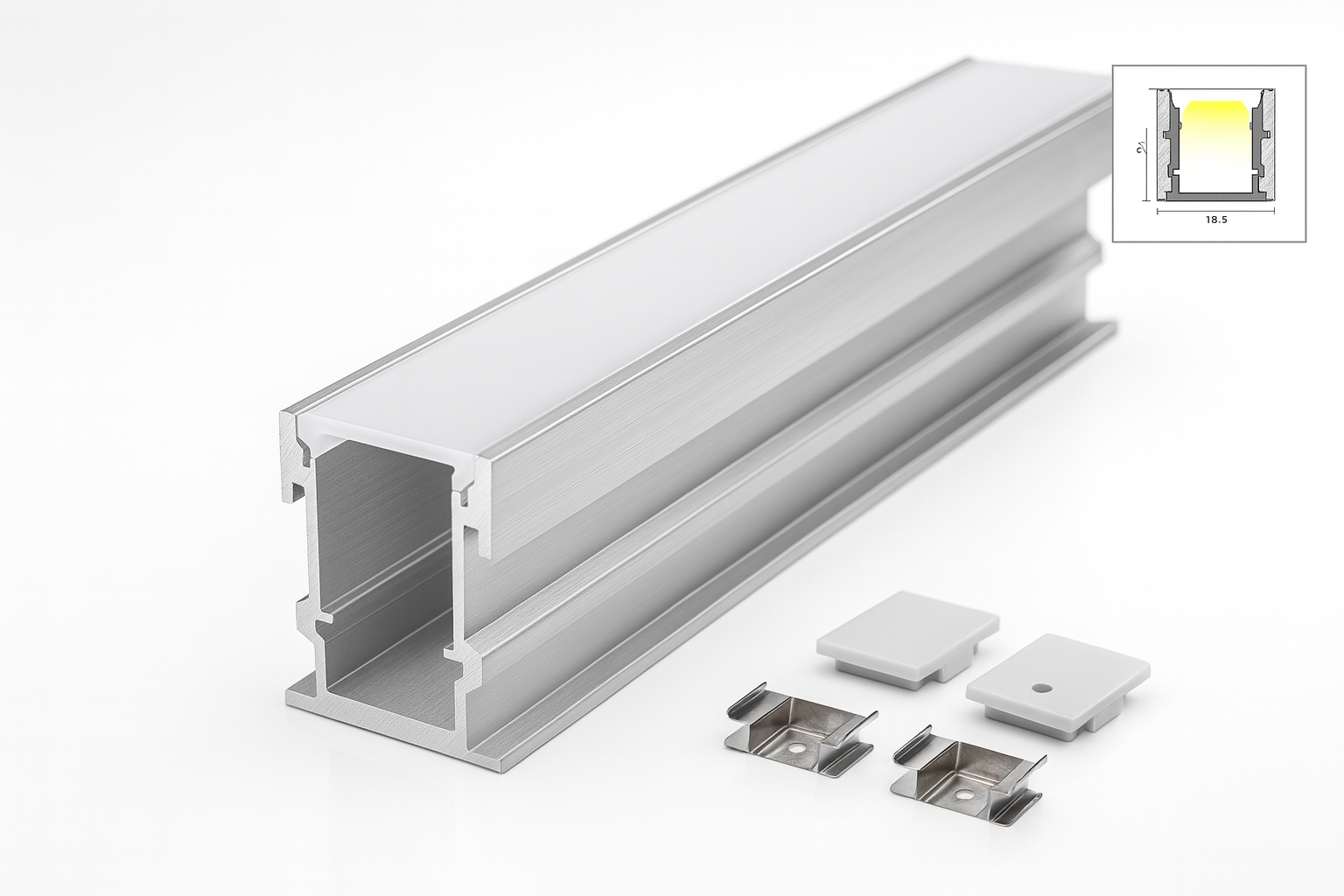

Recessed Aluminium Floor Housing
- Supplied lengths: 2m sections (quantity matched to your pack)
- Recessed depth: 26mm
- Interior width: 12.6mm
- Exterior bottom width: 21mm
- Material: Aluminium with opal diffuser (extra-deep for floor use)
What’s Included (Full Pack)
- IP67 COB LED strip – selected CCT (3000K / 4000K / 6500K) & length (10–50m)
- Matched 24V power supplies – sized for your chosen length
- Recessed aluminium floor housing + diffuser – in 2m sections with end caps
- Basic mounting accessories
Ordering Guide
- Select Colour Temperature: 3000K (warm), 4000K (neutral), or 6500K (daylight).
- Select Pack Size: 10m, 20m, 30m, 40m or 50m. We supply the matching drivers and housing lengths.
- Optional extras: add SY cable and a weatherproof junction box if required.
Installation Notes
- Powering long runs: Any length over 20m must be powered from both ends to minimise voltage drop.
- Wiring: Use appropriately sized, outdoor-rated SY cable. Reseal cut ends and terminations to maintain IP67 integrity.
- Power supplies: Install indoors where possible; if outdoors, use a suitably rated junction box.
- Profile recess: Flat, well-drained channel (26mm depth). Avoid bend radius tighter than 30mm.
- Installation by a qualified electrician is recommended.
Need a bespoke plan? We can size drivers, plan feeds, and produce a connection diagram for your project.
Contact us for a tailored layout and bill of materials.
