Great for Offices, Home Offices, Cafés, Bars, Restaurants, Coffee Shops, Hospitality areas anywhere where someone might need a FASTCHARGE i.e., grab a coffee 30 mins later you have 50% charge Knightsbridge FASTCHARGE USB sockets can deliver a 0-50% charge in under 30 minutes with compatible devices. FASTCHARGE is achieved by the intelligent switching of voltages between 5V to up to 12V to optimize and deliver the maximum input your device can handle. Your device decides how much power it€™s going to draw down. Devices that support QC3.0 (many Android based devices) can use the USB-A port to achieve up to 18W. Devices that support USB-PD (many Android based devices and iPhone8 or above) can use the USB-C port to achieve up to 18W. If a legacy device does not support these then up to 10W can be achieved from the USB-A port, or up to 15W from the USB-C port Features
- Constructed from high quality components and materials to ensure the longevity of the install
- Fully certified to the latest British Safety Standards Benefits
- Built in overheat and overload protection
- ErP Ready (0.1W in stand-by mode)
WE RECOMMEND ONLY USING CERTIFIED USB CABLES FOR SAFETY, OPTIMUM PERFORMANCE AND TO ENSURE COMPATIBILITY IMPORTANT:
THE DEVICE CONTROLS THE POWER BEING DRAWN, NOT THE SOCKET MOST COMPATIBLE DEVICES WILL ONLY ACTIVATE FASTCHARGE BETWEEN 0-70% BATTERY POWER. AFTER THIS IT WILL REVERT TO STANDARD CHARGING PARAMETERS TO PROTECT BATTERY

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	SFR9919

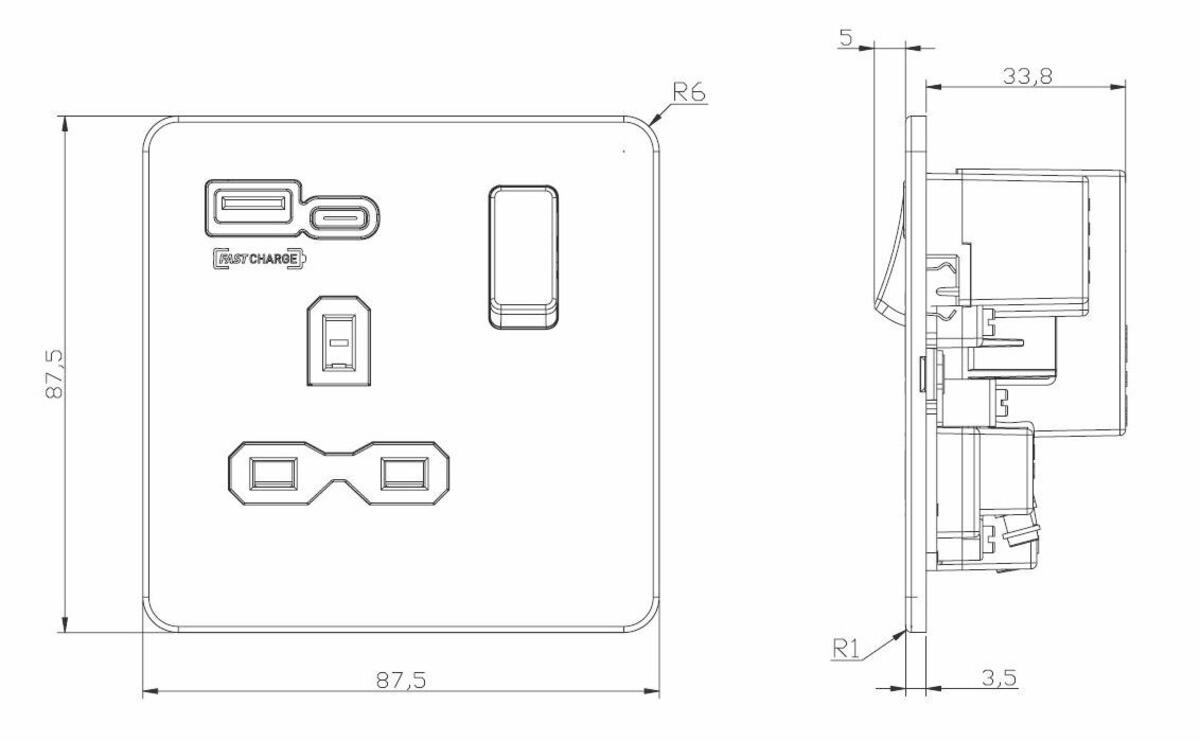

Height (mm)	87.5
Width (mm)	87.5
Projection (mm)	4.3
Min. Mounting Box Depth (mm)	35
Material	Premium grade steel
Finish	Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze
Class	I
IP Rating	IP20
Voltage (V)	230V 50Hz
Fastcharge	Yes
Earth Terminal	Yes
Warranty (Years)	2
Commodity Code	8536 6990 85
