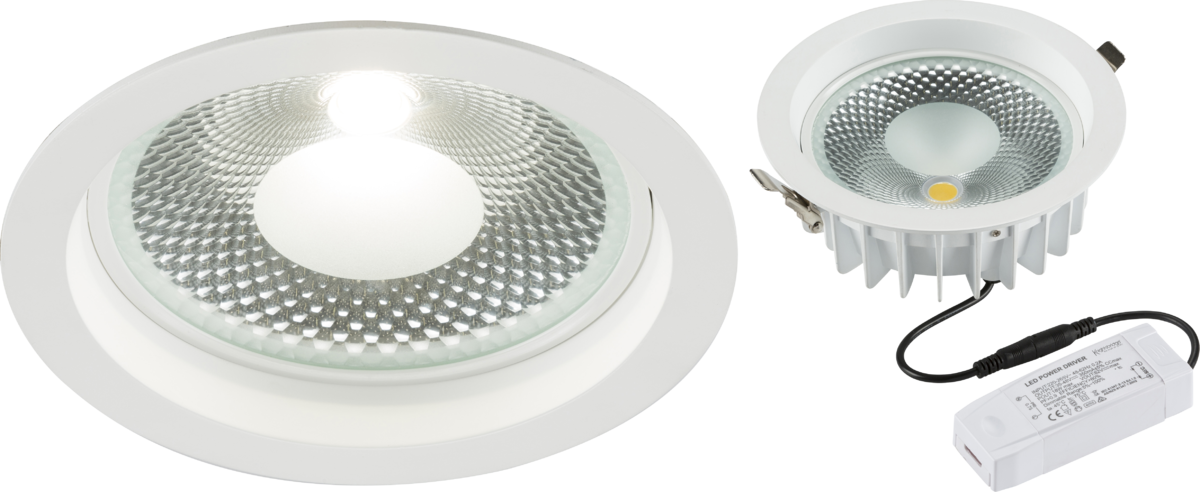

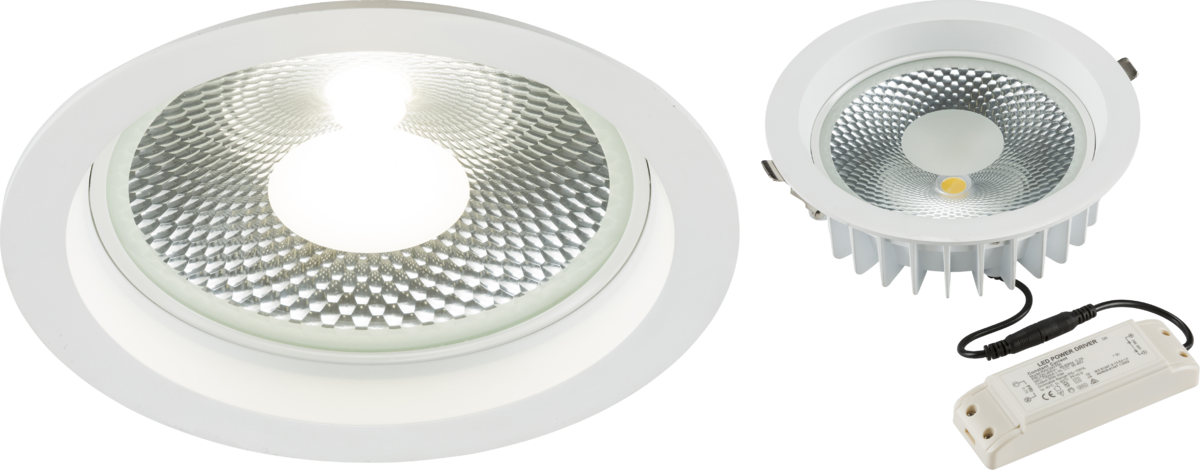

230V COB LED round recessed commercial dimmable downlight. COB LED technology. High output reflector. Anti-glare fascia. Ideal for use as an alternative to traditional PL downlights. Energy efficient with almost zero maintenance required. For retail, office, conference rooms, and many other commercial applications. Supplied complete with plug & play constant current dimmable LED driver. - Cool White, 4000K - 10W = 1080lm - 15W = 1780lm - 20W = 2430lm - 30W = 3480lm Dimmable with most trailing edge dimmers (please check compatibility prior to installation).

Download

Datasheet

Specifications

Variant SKU	CRDL10
SKU	CRDL10, CRDL15, CRDL20, CRDL30
Diameter (mm)	10W = 135, 15W = 195, 20W - 195, 30W = 220
Recessed Depth (mm)	70
Minimum Void (mm)	100
Cut-out Diameter (mm)	10W = 125, 15W = 175, 20W = 175, 30W = 200
Material	Aluminium
Material 2	polycarbonate
Finish	White
Class	II
IP Rating	IP20
Voltage (V)	230V 50Hz
Cable Length (m)	0.3
Diffuser	Clear
Lamp Technology	CoB LED
Lamp Included	Yes
Dimmable	Trailing-edge only*
Rated Life (Hours)	30000
Beam Angle (°)	100
Colour Temperature (K)	4000
Light Colour	Cool White
Lumens (lm)	10W = 1080, 15W = 1780, 20W = 2430, 30W = 3480
Lumens (Light Source only)	10W = 1080, 15W = 2320, 20W = 2860, 30W = 3850
Wattage (W)	10, 15, 20, 30
Efficacy	135
CRI	80
Warranty (Years)	3
Commodity Code	9405423990
