Description

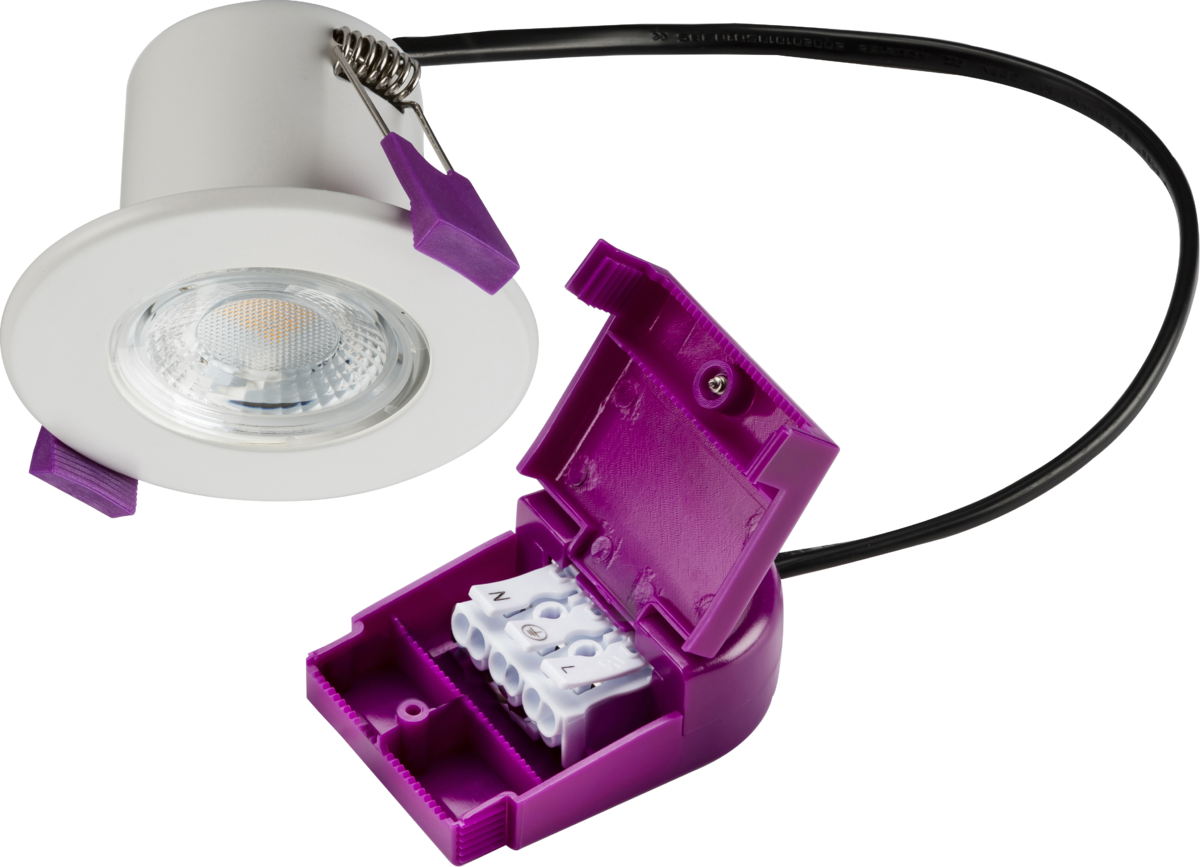

230V IP65 5W Fire-Rated LED Downlight
- Push-fit terminals
- Loop in/loop out
- Tested to 30, 60 and 90 minutes
- Certified for I Joist and Web joist Use
- Acoustic rated
- Supplied with white trim
- interchangeable bezels available
- 3 year warranty
- Dimmable*
*For use with Trailing Edge dimmers - please check compatibility before installation.
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | CFR5WW, CFR5CW, CFR5DL |

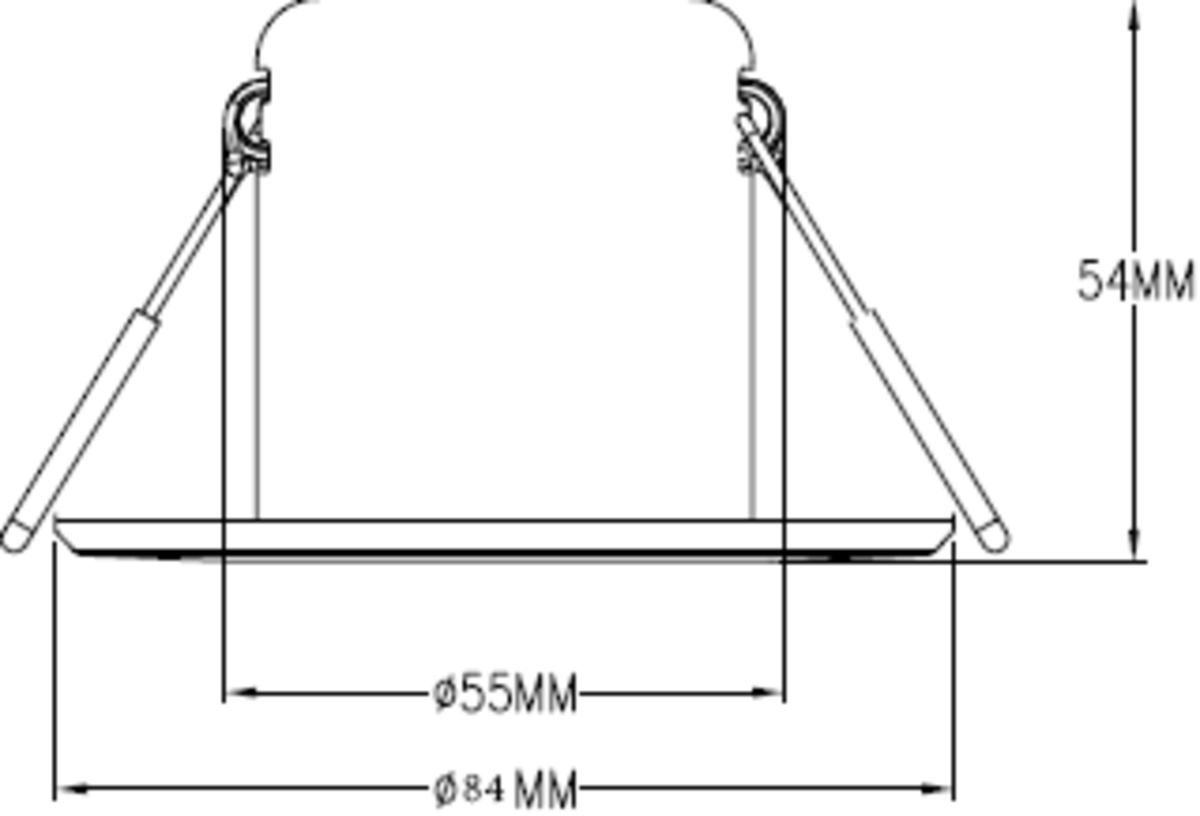

| Diameter (mm) | 84 |
| Projection (mm) | 4 |
| Recessed Depth (mm) | 50 |
| Minimum Void (mm) | 100 |
| Cut-out Diameter (mm) | 55 |
| Material | Pressed steel |
| Finish | White |
| Class | II |
| IP Rating | IP65 (IP20 from above) |
| Voltage (V) | 230V 50Hz |
| Cable Length (m) | 0.3 |
| Lamp Technology | SMD LED |
| Lamp Included | Yes |
| Dimmable | Yes* |
| Rated Life (Hours) | 50000 |
| Beam Angle (°) | 60 |
| Colour Temperature (K) | 3000, 4000, 5000 |
| Light Colour | Warm White, Neutral White, Cool White |
| Lumens (lm) | 600 |
| Lumens (Light Source only) | 700 |
| Wattage (W) | 5 |
| Efficacy | 149.6 |
| CRI | 80 |
| Warranty (Years) | 3 |
| Commodity Code | 9405423990 |
