Description
24V IP20 25W/50W/100W constant voltage dimmable driver
- Max. output 25W/50W/100W
- Dimmable with most trailing edge dimmer
- Protections; open circuit, short circuit, overload, over temperature
- SELV output
- Protection Class II For internal use only Please check dimmer compatibility before installation
- Max. output 25W/50W/100W
- Dimmable with most trailing edge dimmer
- Protections; open circuit, short circuit, overload, over temperature
- SELV output
- Protection Class II For internal use only Please check dimmer compatibility before installation
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | 24DC25D, 24DC50D, 24DC100D |

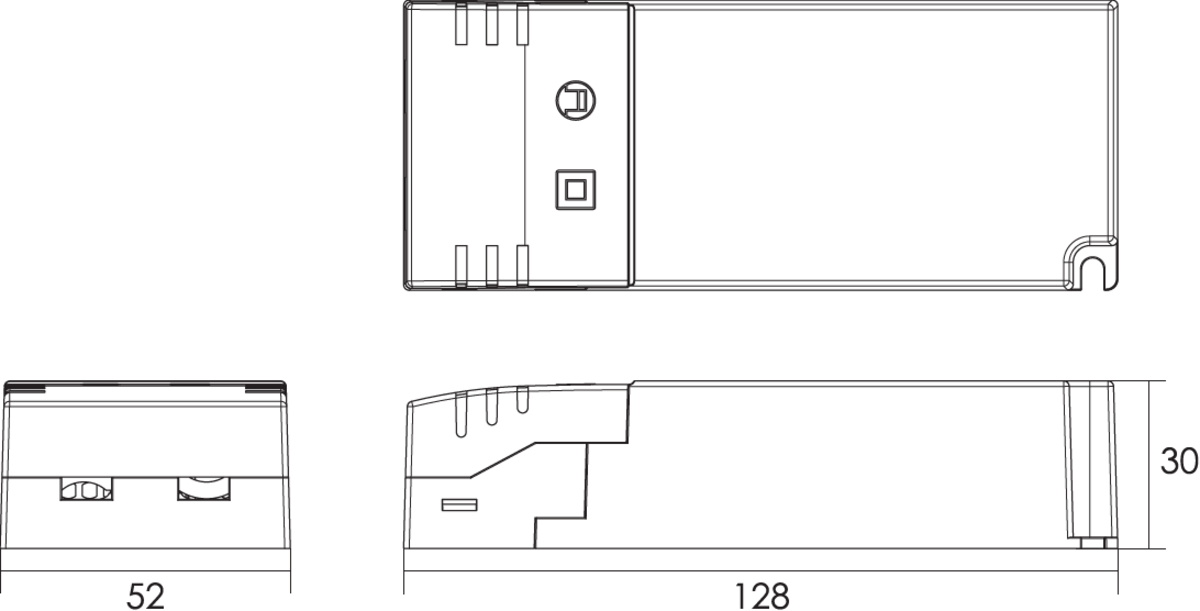

| Length (mm) | 25W = 128, 50W = 184, 100W = 210 |
| Height (mm) | 30 |
| Width (mm) | 25W = 52, 50W = 61, 100W = 67 |
| Material | ABS |
| Finish | White |
| Class | II |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Dimmable | Trailing-edge only* |
| Driver Type | Constant Voltage |
| Warranty (Years) | 3 |
| Commodity Code | 8537109899 |
