HIBO LED is a "High Bay" luminaire using a LED module with SMD diodes. The luminaire has a high rating of tightness IP65, thanks to which it can be mounted in places of high dustiness and exposed to water. It is an industrial luminaire suitable for lighting of storehouses, production halls and large commercial spaces.

Downloads

Datasheet

Specifications

Brand	Kanlux
SKU	31111, 31112, 31113, 31114

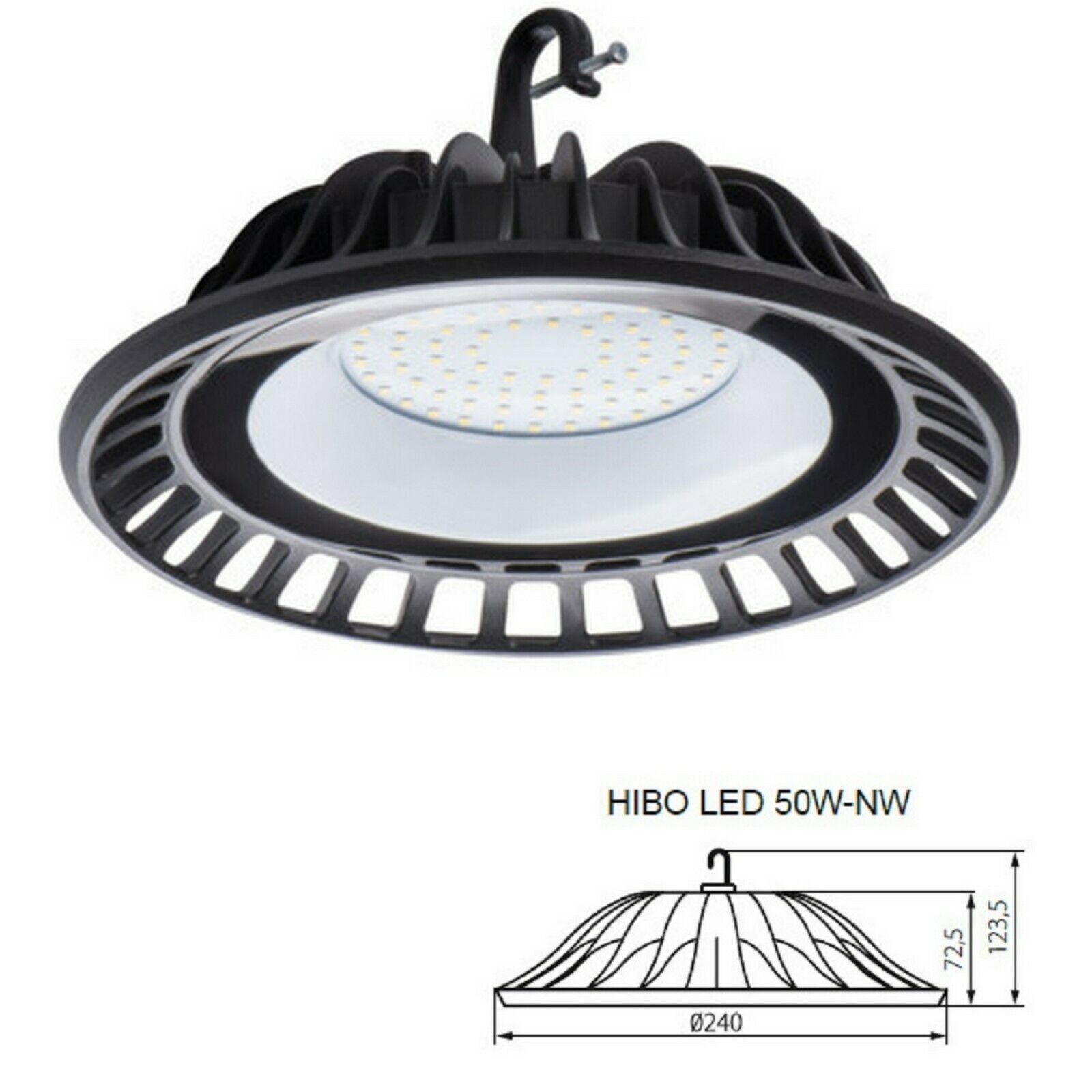

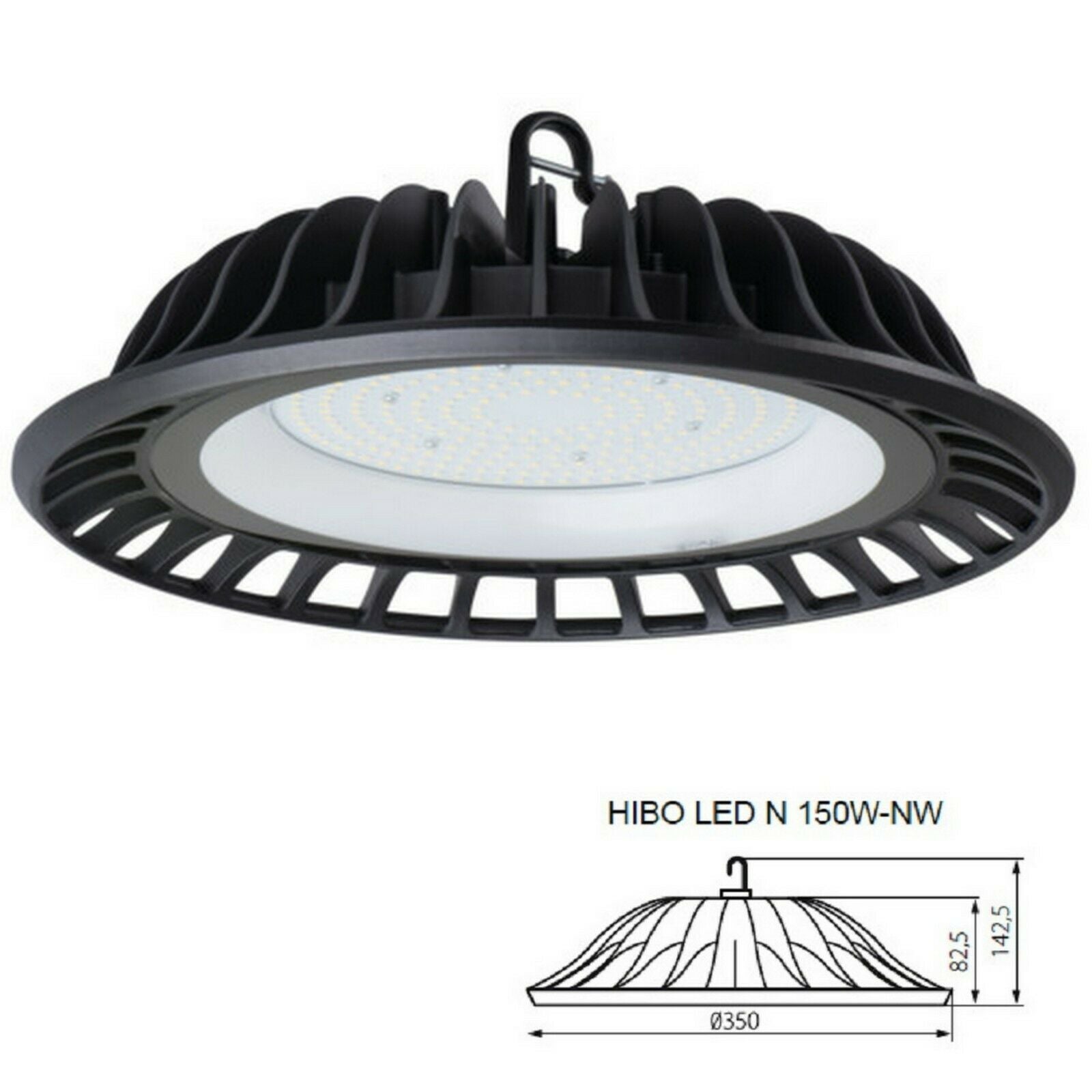

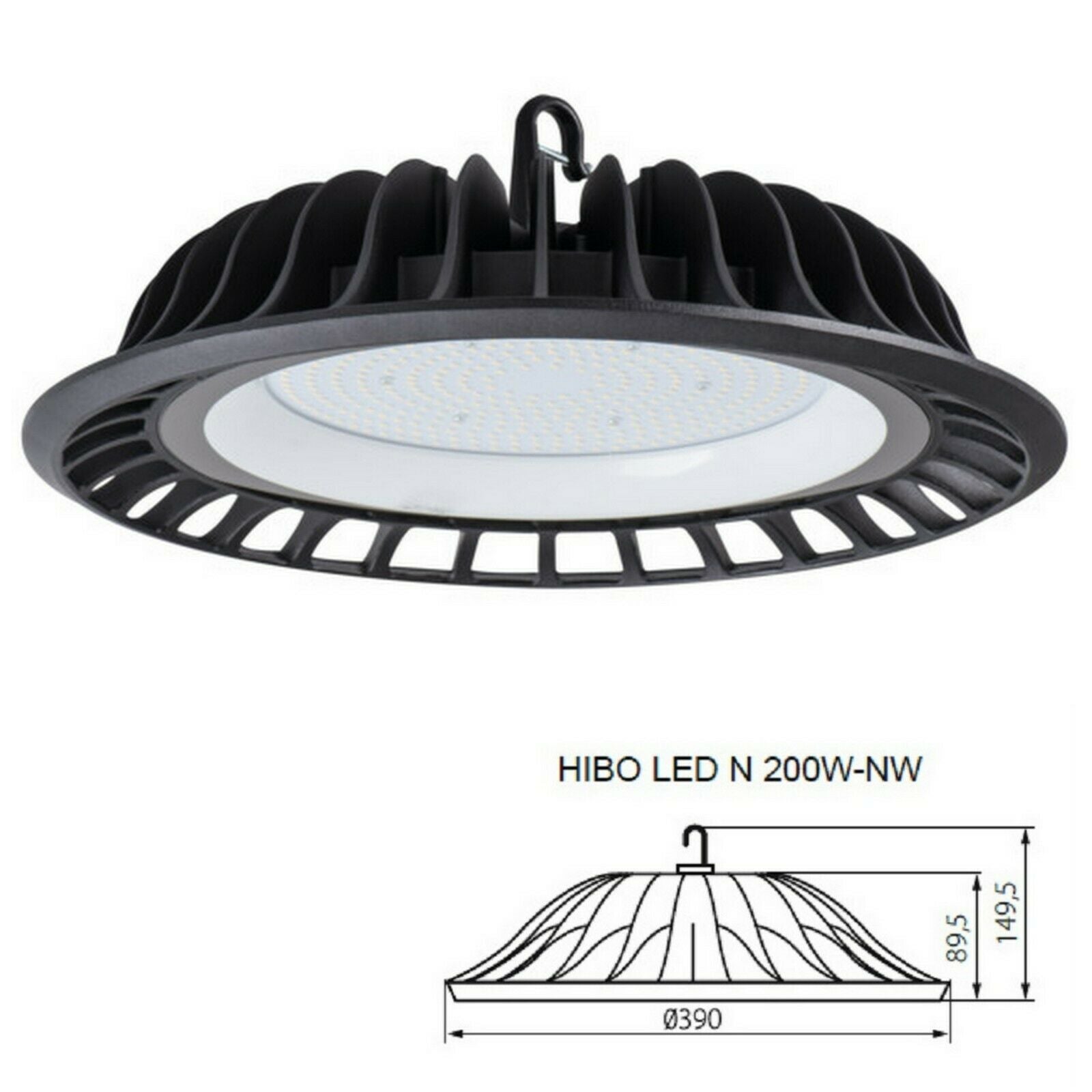

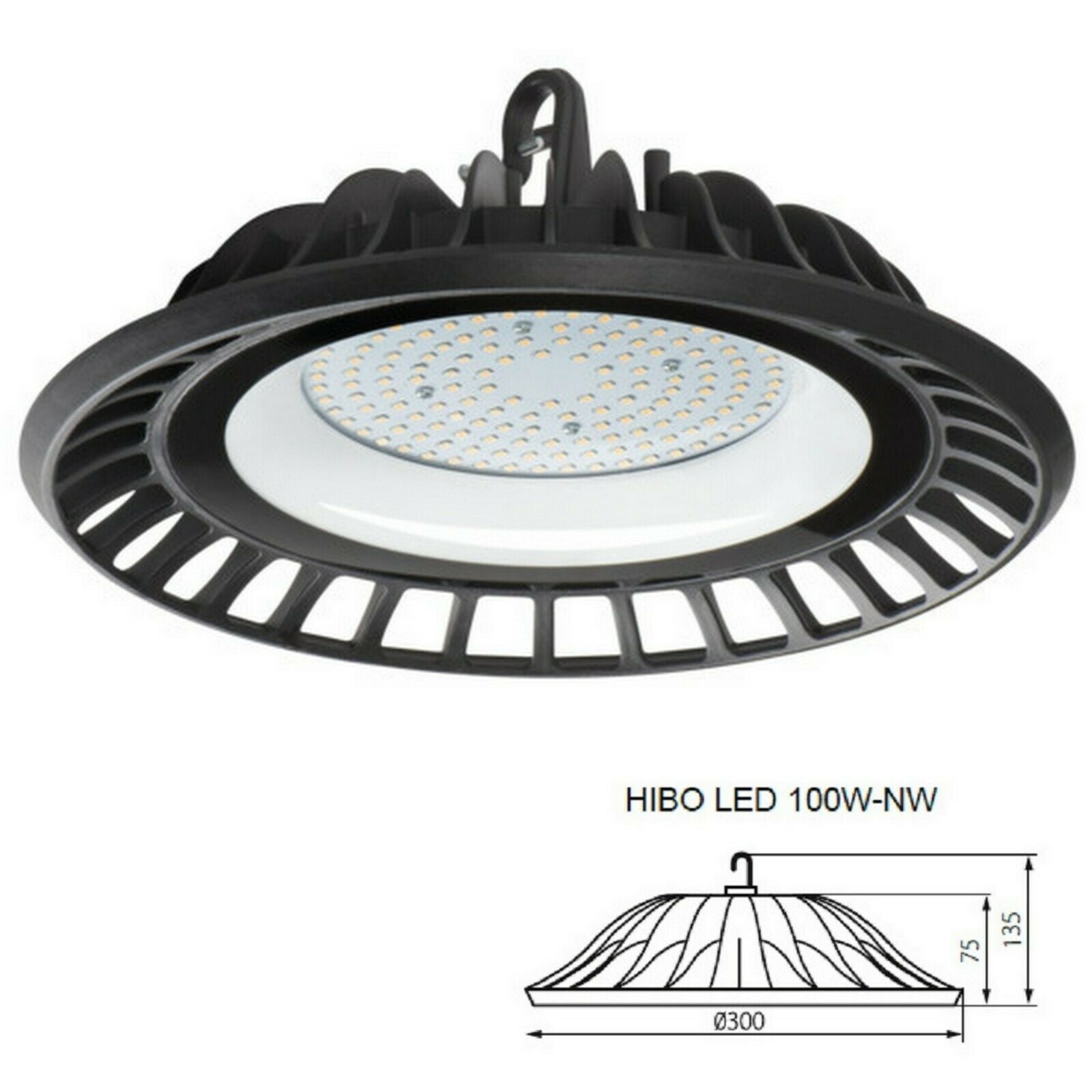

Diameter (mm)	50W = 240, 100W = 300, 150W = 350, 200W = 390
Height (mm)	50W = 124, 100W = 135, 150W = 143, 200W = 150
Material	Aluminum Alloy
Finish	Black
IP Rating	IP65
Voltage (V)	220

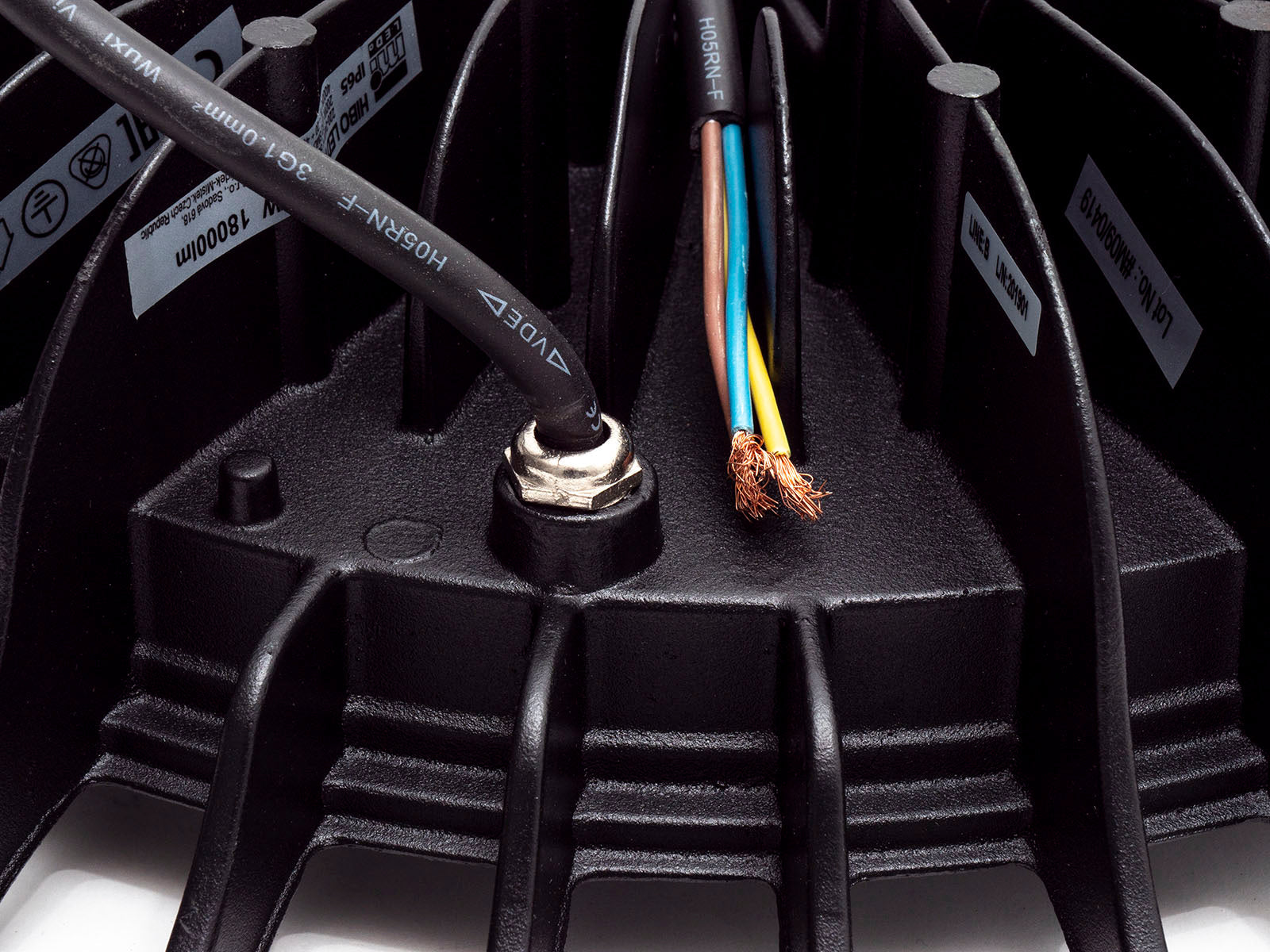

Cable Length (mm)	450
Lamp Technology	LED SMD
Dimmable	No
Rated Life (Hours)	25000
Beam Angle (°)	120
Colour Temperature (K)	4000
Light Colour	Neutral White
Lumens (lm)	50W = 4500, 100W = 9000, 150W = 13500, 200W = 18000
Wattage (W)	50, 100, 150, 200
Efficacy (lm/W)	90
CRI	80
Commodity Code	13114
Place of assembly	To Be Built On The Ceiling
Place of application	Indoor And Outdoor
On/Off Cycles	20000
Integrated LED Light Source	Yes
Wire Cross Section (mm²)	1
