Description

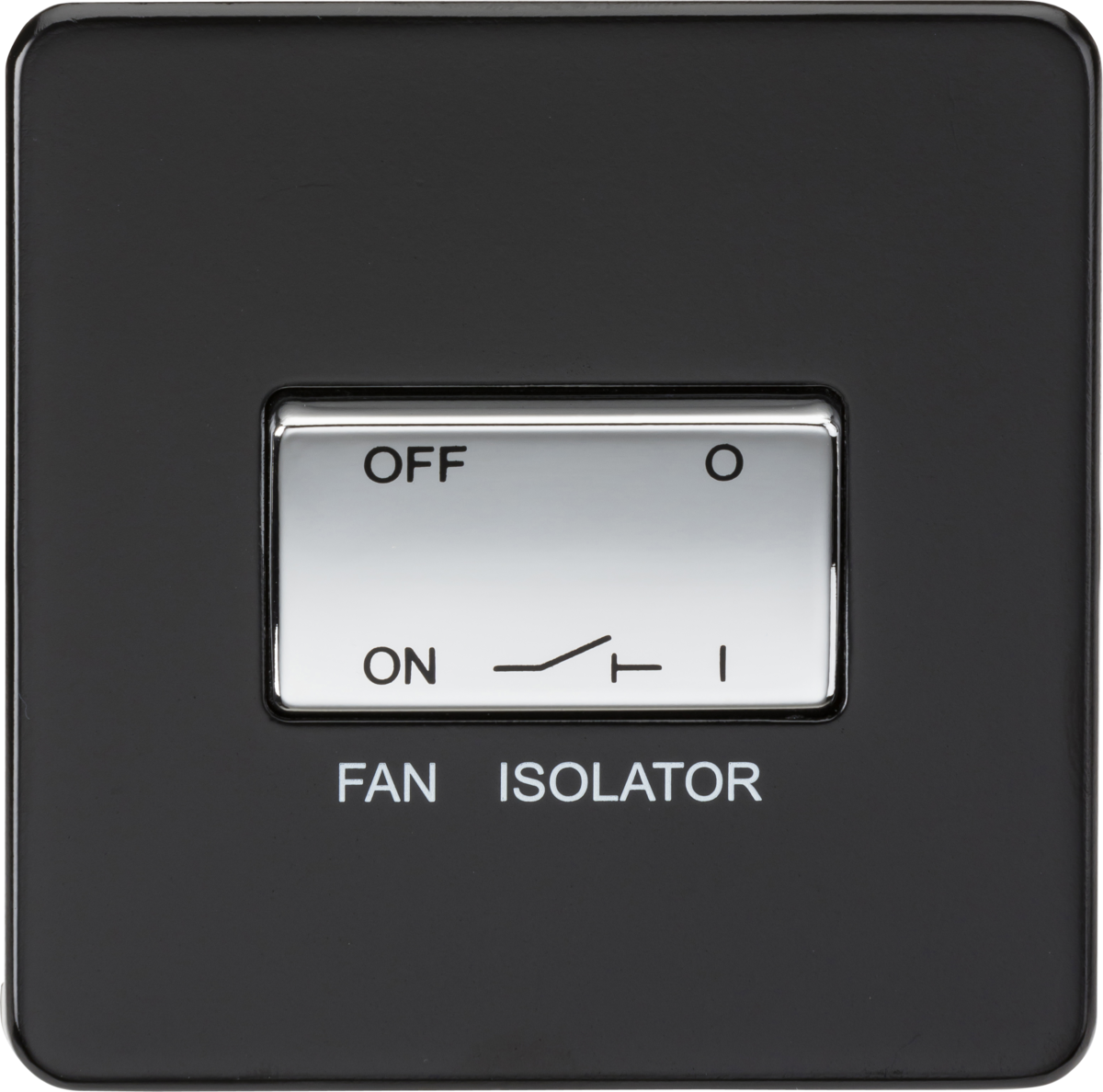

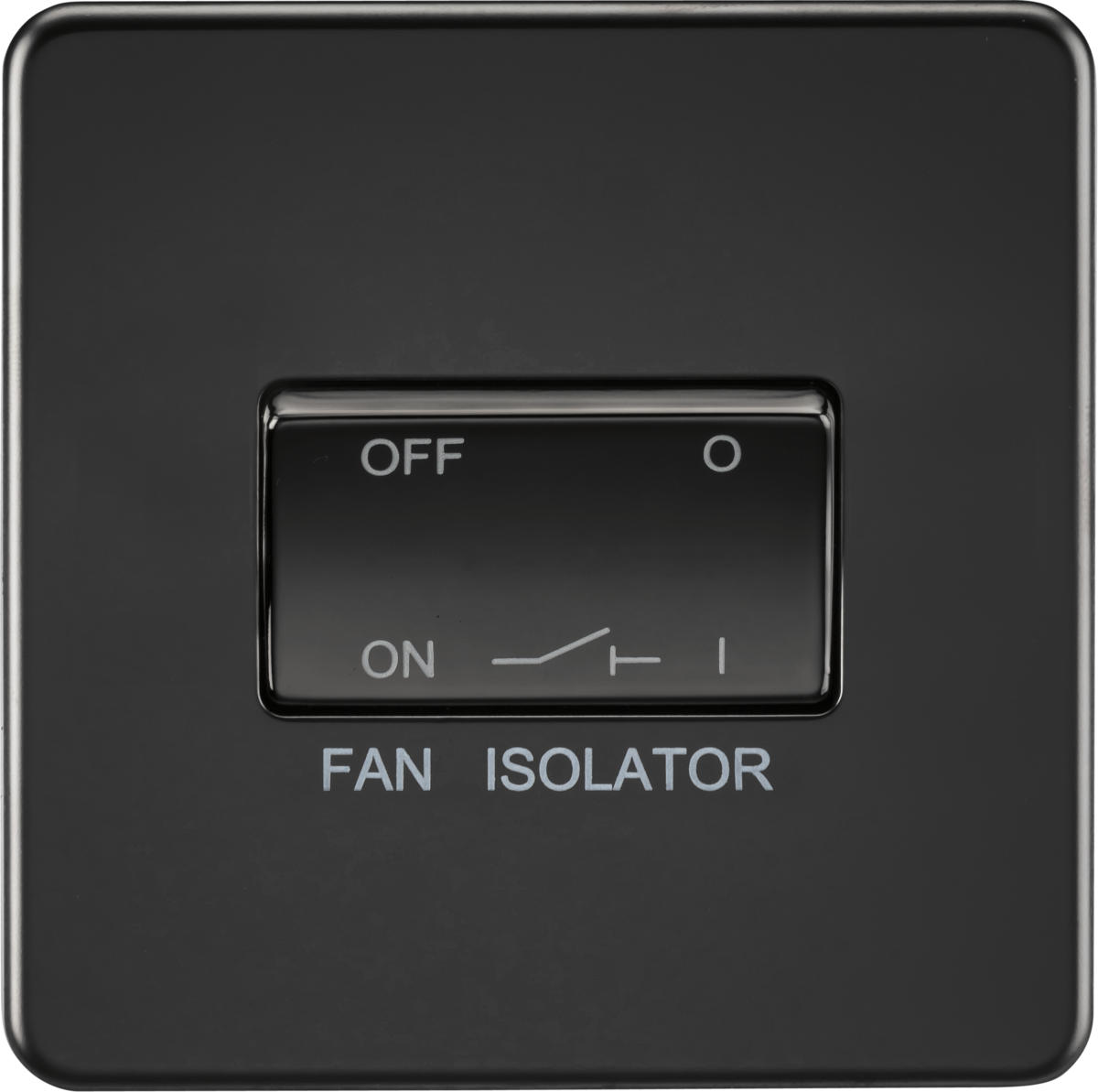

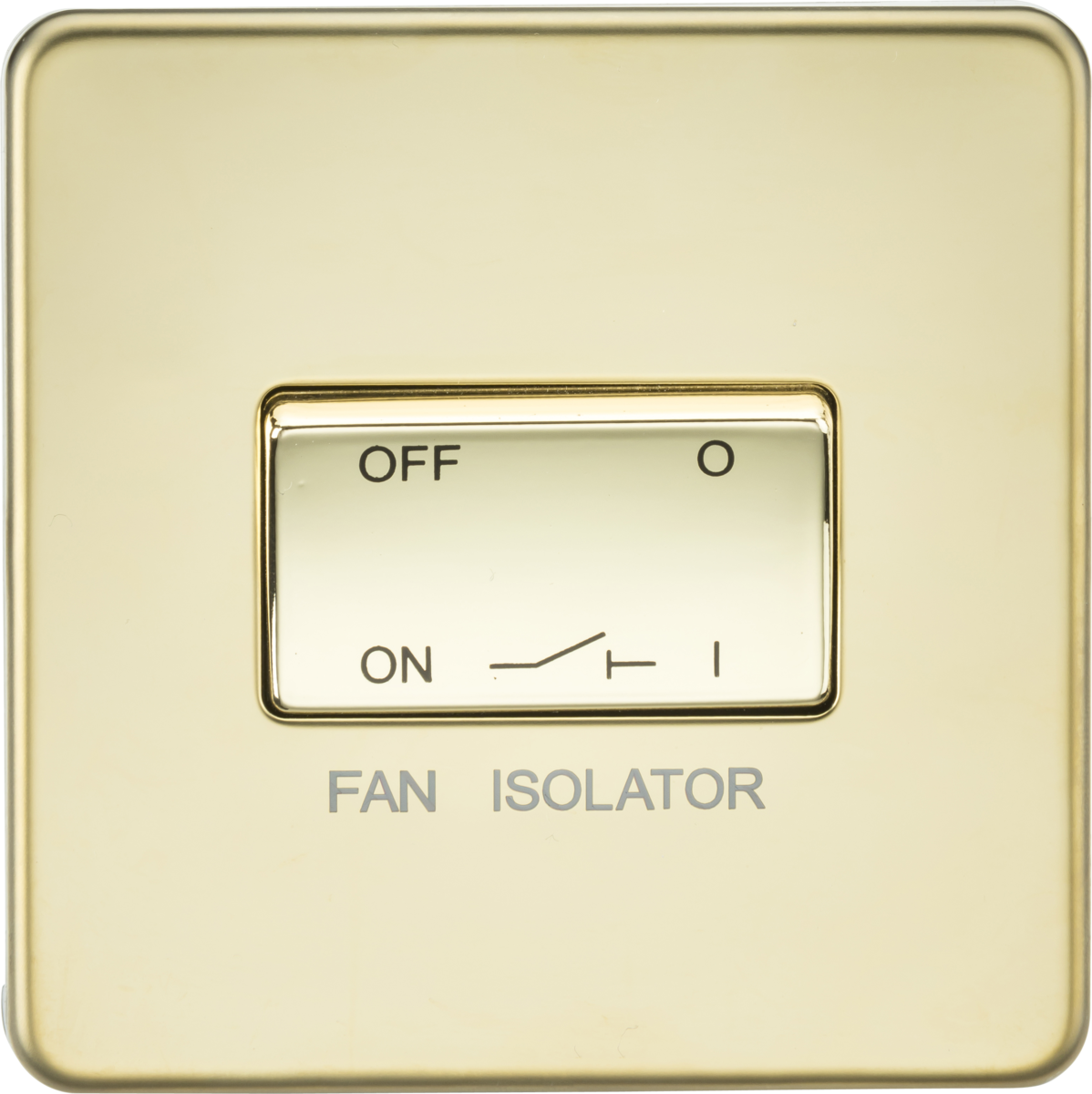

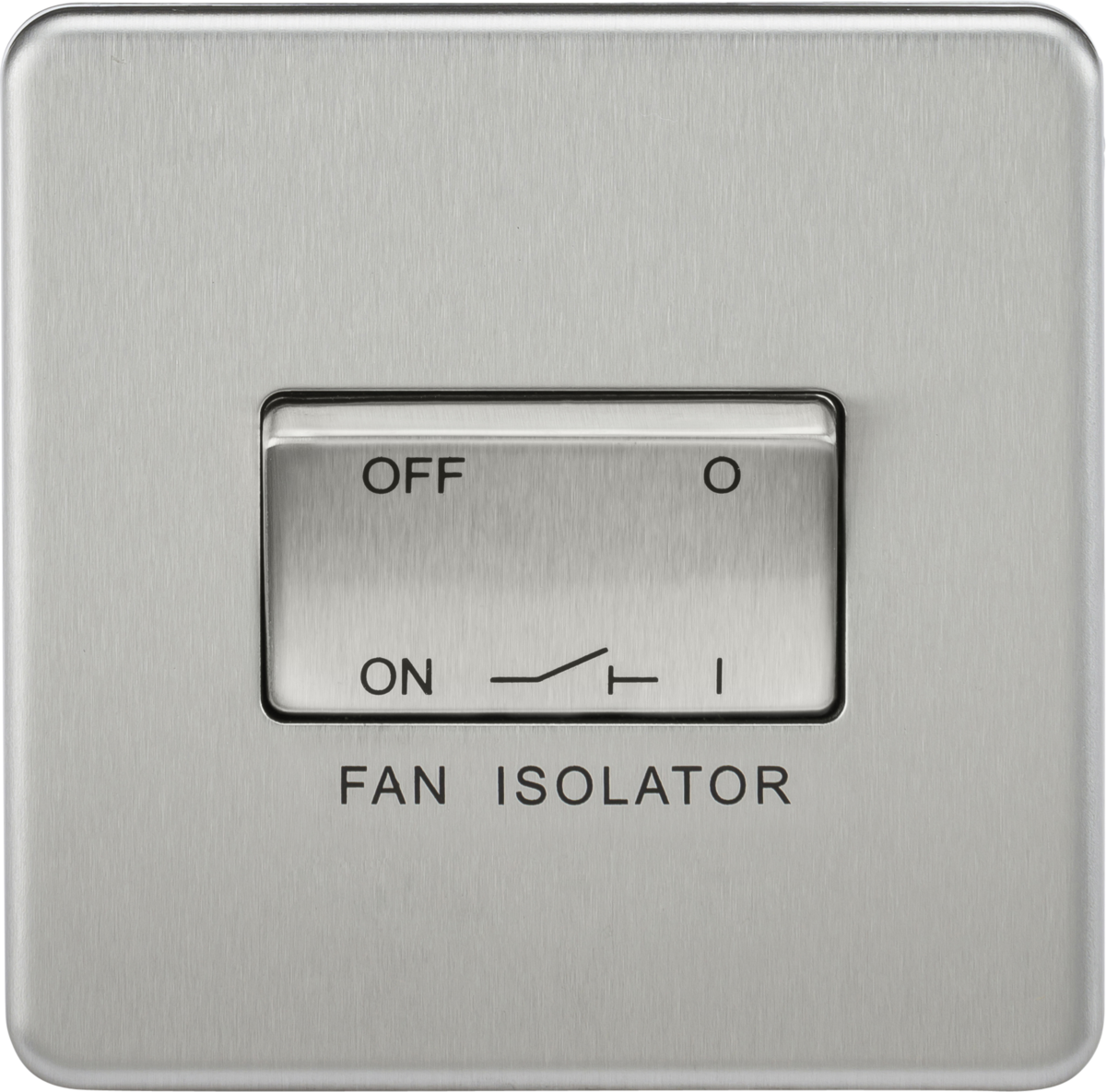

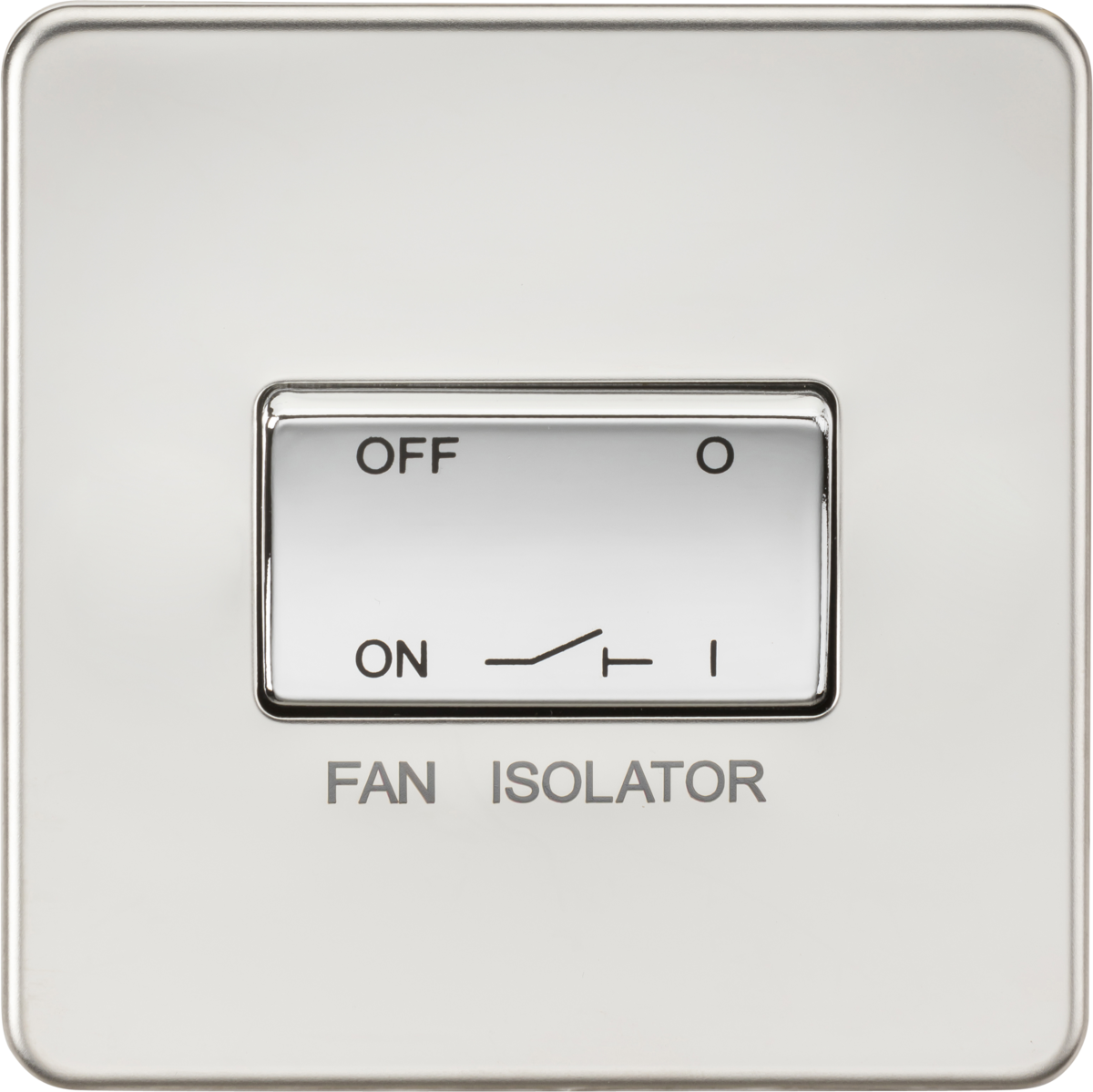

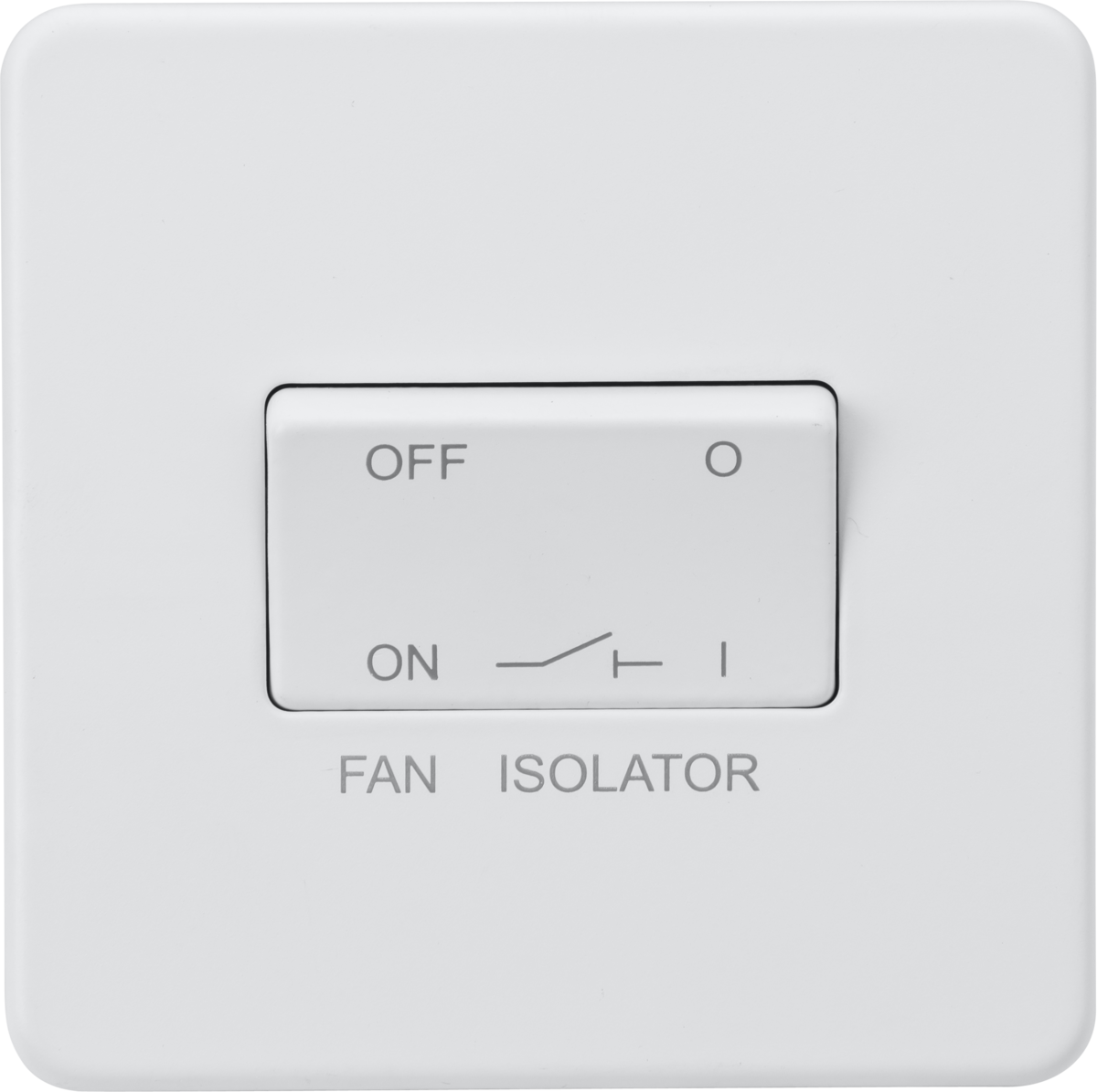

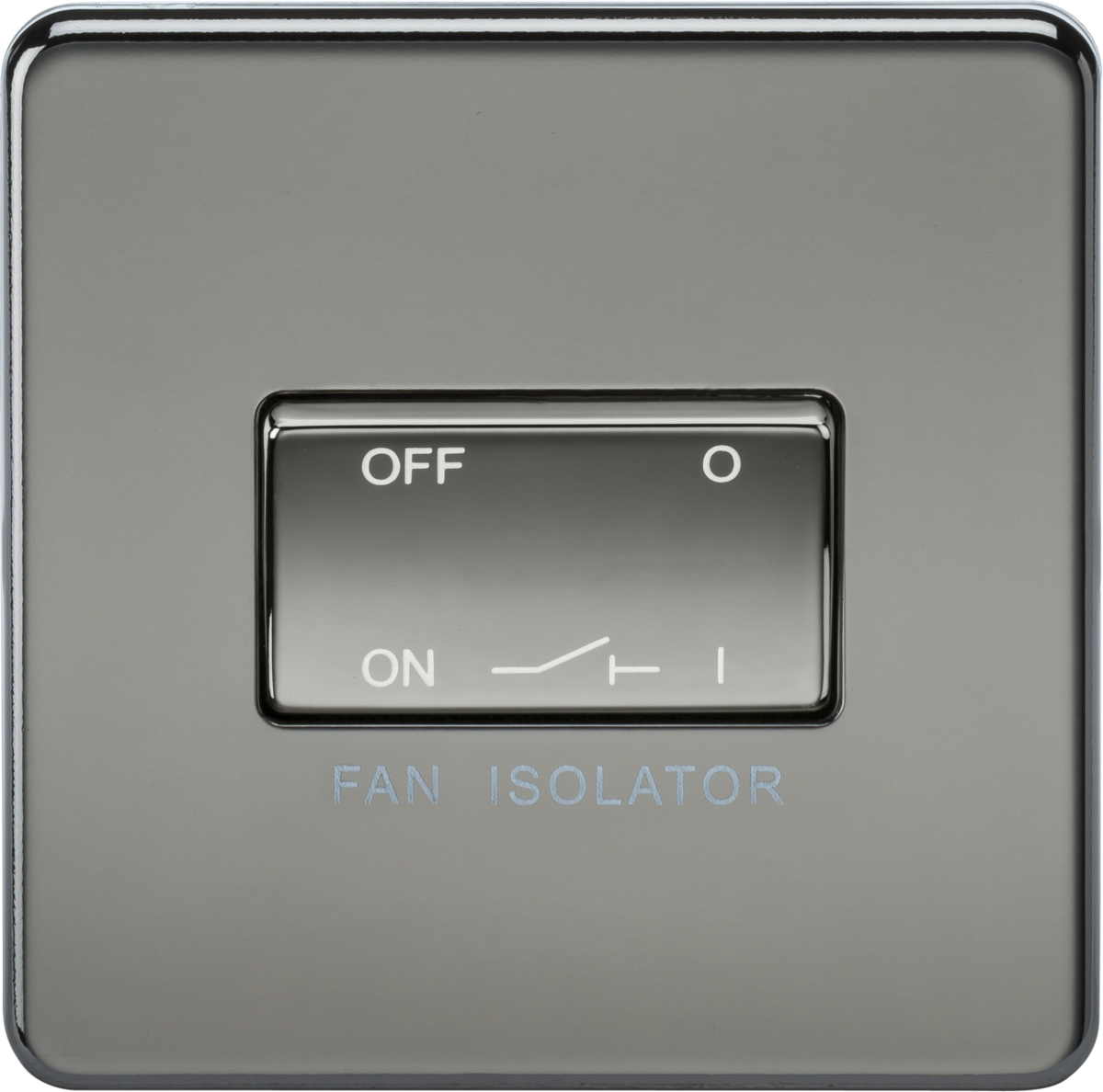

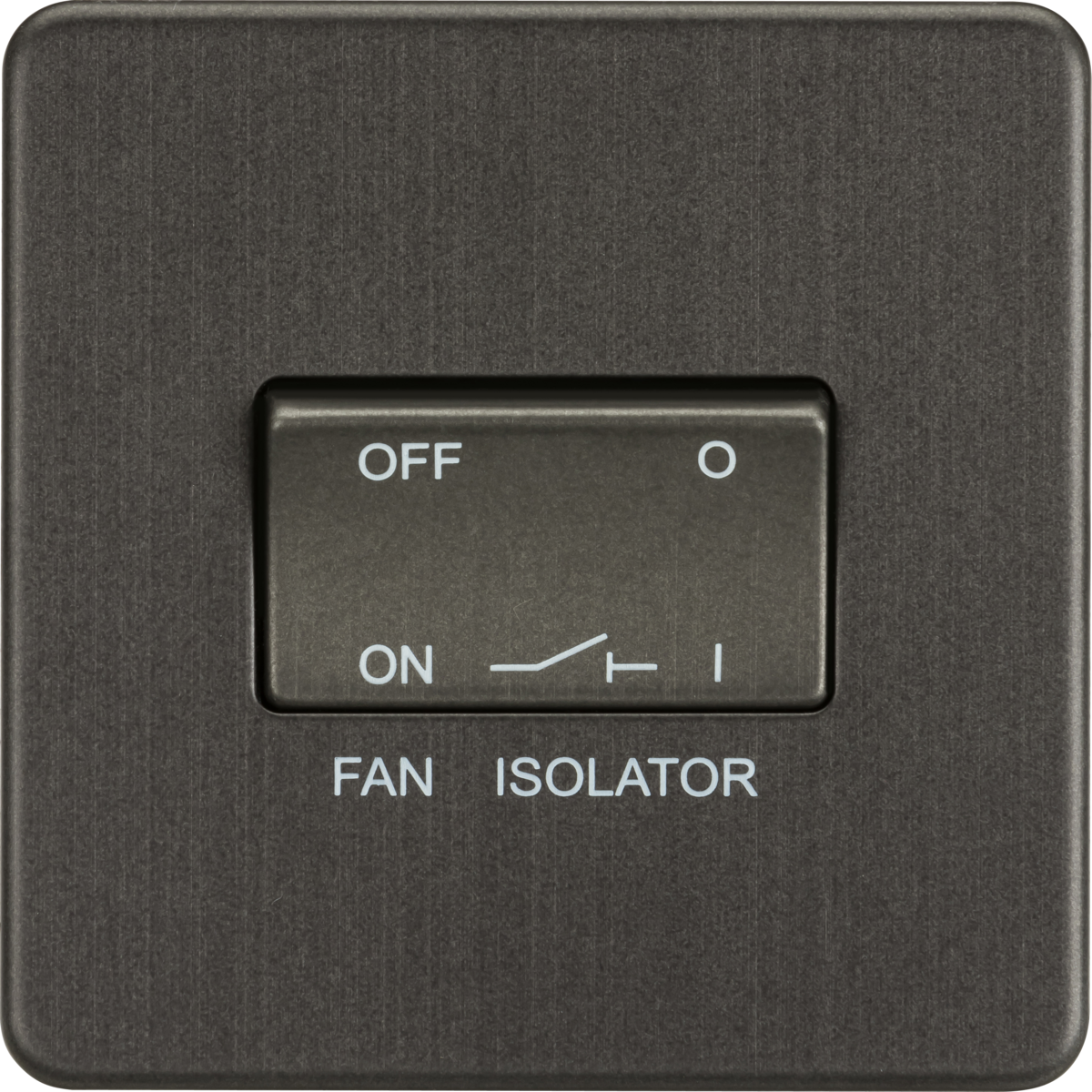

Ideal for providing a safe and simple method of isolating fan units in en-suite bathrooms, family bathrooms, utility rooms, store rooms etc. Often the fan unit will be wired into the lighting circuit for convenience and efficiency. With this kind of installation there is often a need to leave the lighting circuit live whilst isolating the fan for maintenance. Flawless Screwless low profile metal design with matching metal rocker.
- 10AX rated
- Triple Pole
- Screwless low profile design with built in gasket
- Certified to EN 60669-1, EN 60669-2-4
- Minimum mounting box 16mm
- 10AX rated
- Triple Pole
- Screwless low profile design with built in gasket
- Certified to EN 60669-1, EN 60669-2-4
- Minimum mounting box 16mm
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | SF1100 |

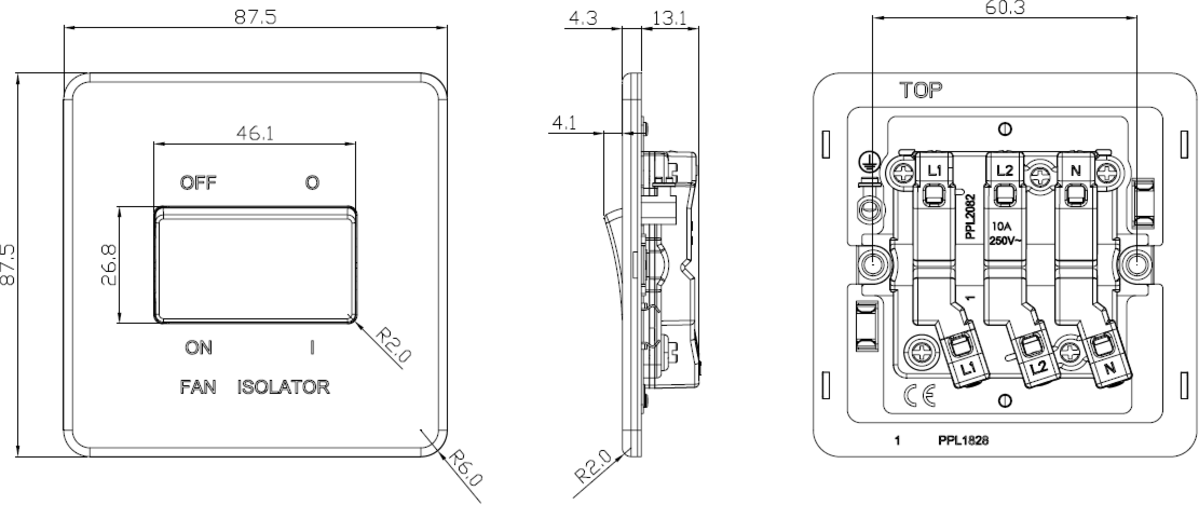

| Height (mm) | 87.5 |
| Width (mm) | 87.5 |
| Projection (mm) | 4.3 |
| Min. Mounting Box Depth (mm) | 16 |
| Material | Premium grade steel |
| Finish | Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Warranty (Years) | 15 |
| Commodity Code | 8536 5080 90 |
